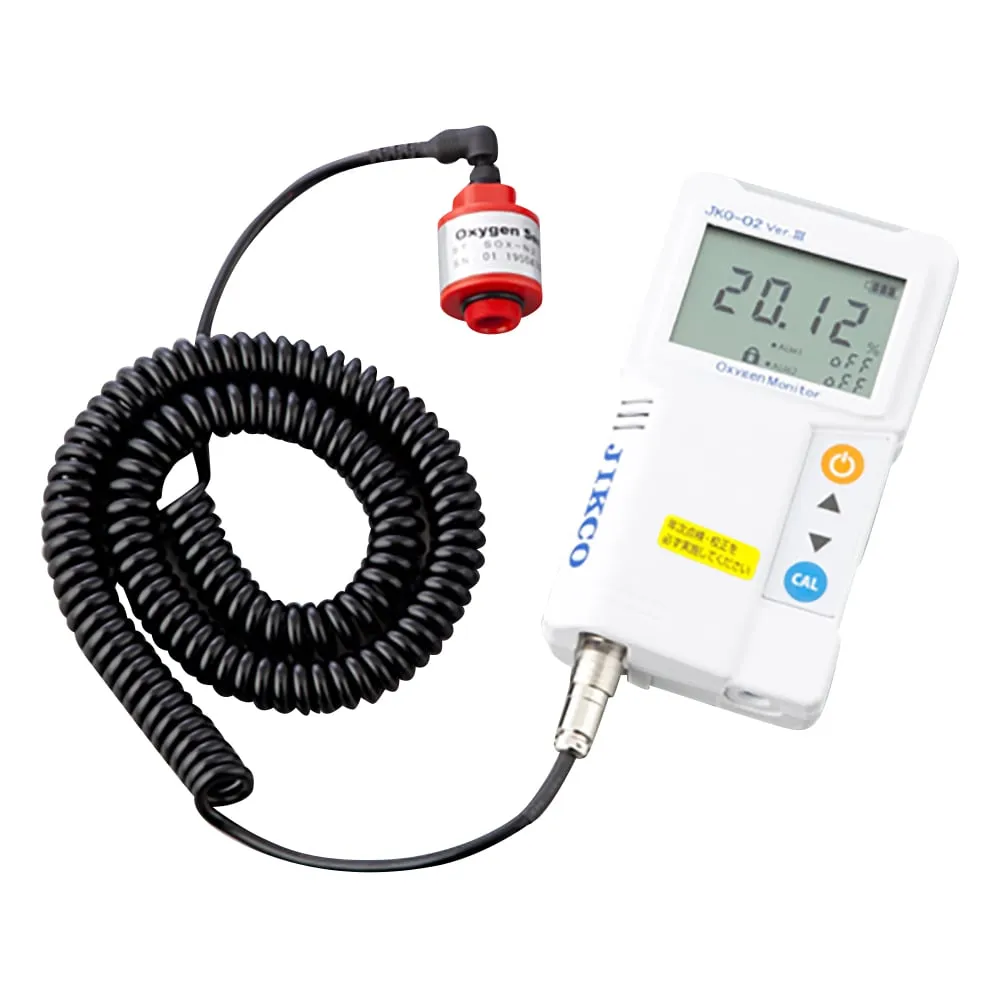

1-9499-11-20 Low Concentration Oxygen Monitor With Calibration Certificate JKO-O2LJD3
Product Description
Product Model: 1-9499-11-20Product Brand: ICHINEN JIKCO […]
Contact Us
Product Details
Product Model: 1-9499-11-20
Product Brand: ICHINEN JIKCO Ltd.
Features
- It employs a sensor with a fast response speed and supports the measurement of residual oxygen concentration in the low concentration region.
- The sensor is machined with M16 P1 screws and can be connected directly to the device or ***d with an in-line jig (sold separately) to measure the oxygen concentration in the piping (line).
Spec
- Model number: JKO-O2LJD3
- Proof of calibration: none
- Detection principle: Galvani battery type
- Response speed: about 5 seconds (90% Response), about 40 seconds (99.5% Response)
- Warning: Two levels (Can be changed arbitrarily), electronic buzzer intermittent sound (80 dB), red LED flashing x 2 pieces
- Alarm output: Relay non-voltage 1c contact, maximum load capacity/300 mA, 30 VDC
- Analog output: 4 to 20 mA (FS)/Special harness (attachment)
- Power supply : AA size alkaline battery x 4 pieces (test attachment) or AC adapter (attachment)
- battery life span: 2000 hours
- Size: 82 x 38 x 145mm
- Weight: Body/190g, Sensor/140g
- Lead wire length: about 1.7 m
- Wall bracket included.Use an opal light bulb if you have an ordinary lamp shade or lamp and want an even, diff***d distribution of light.Use a clear light bulb if you have a lamp with a perforated or cut-out pattern or other airy, open design and want the pattern to cast effects on the wall.
- pressure of *** range: atmospheric pressure ±10%
- Measurement range: 0 to: 25.0%
- Resolution: 0.01%
- *Measure the pressure of the measuring gas in a constant state.
