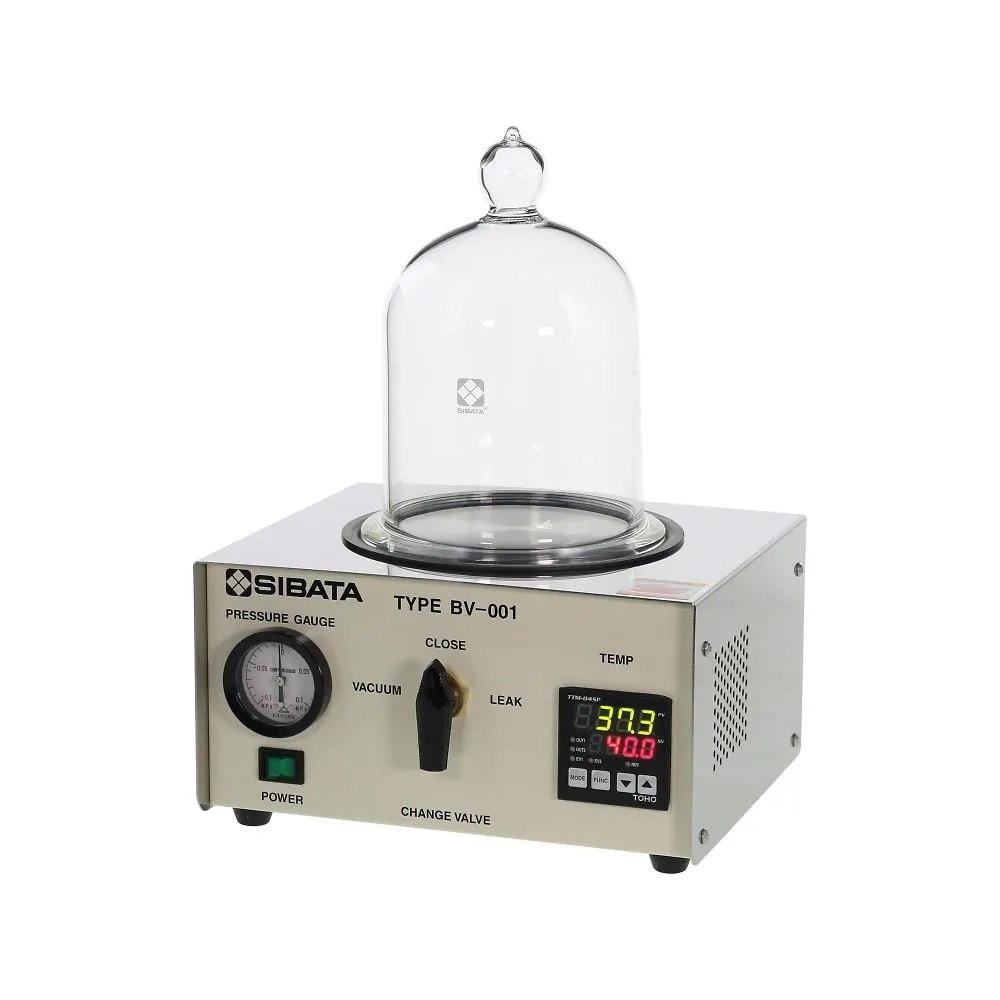

61-4427-75 Bell Jar Vacuum Oven BV-001 050880-001
Product Description
Product Model: 61-4427-75Product Brand: SIBATA SCIENTIF […]
Contact Us
Product Details
Product Model: 61-4427-75
Product Brand: SIBATA SCIENTIFIC TECHNOLOGY LTD.
Features
- Used Vacuum Range/-0.1 MPa~ Atmospheric Pressure (This product is for depressurization only) Temperature Rise Time/200°C Approximately 25 minutes (This is the temperature rise time after auto-tuning is completed) Vacuum Pump Suction Port/Hose Port φ6.5 mm One-Touch Type (Same for Leak Port) Safety Device/Built-in Temperature F***
Spec
- Quantity: One
- Type: BV-001 type
- Mass: 4.0 kg
- Height H (mm): 290
- Width W (mm): 225
- Depth D (mm): 240
- power supply: AC100V 50 / 60Hz 2.5 A
- Temperature adjustment range: 5 to 35 ° C
- Heater capacity: 200 W
- Display: Pressure Display / Confederation, Buldon Tube,-0.1 MPa to 0 to 0.1 MPa
- Temperature sensor: K class thermocouple
- temperature settings range: 40 to 200 ° C
- Inside tank (inner diameter) Dimensions: φ 105 x 90 (H) mm
- Temperature control system: PID control auto-tuning function
