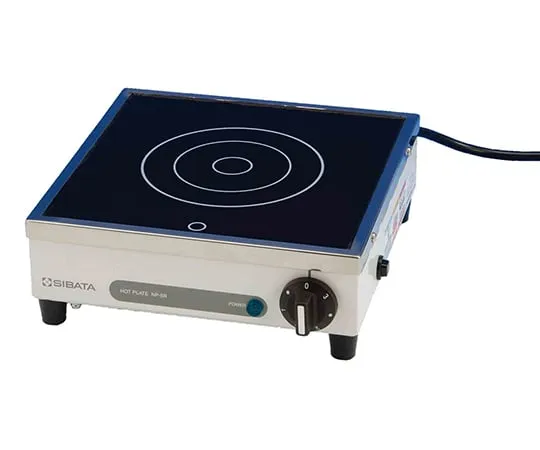

61-4427-67 Hot Plate NP-5R 050850-051
Product Description
Product Model: 61-4427-67Product Brand: SIBATA SCIENTIF […]
Contact Us
Product Details
Product Model: 61-4427-67
Product Brand: SIBATA SCIENTIFIC TECHNOLOGY LTD.
Features
- This hot plate series incorporates a glass-ceramic plate over an electric heater. The heat transfer is excellent, and the sample container can be heated in a short time.
- The glass-ceramic plate on the top plate has excellent heat shock and chemical resistance. As a main body protection device, a cooling fan is built in to suppress internal temperature rise. It also has a built-in circuit protector to shut off the circuit when an overcurrent flows, and a temperature f*** to shut off the circuit when the inside of the device is abnormally high.
Spec
- Type: NP-5R type
- Mass: Approx 3.5kg
- Height (mm): 90
- Width (mm): 250
- Depth (mm): 250
- Plate Size: 230 x 230mm
- Plate material: Glass Ceramic
- Power supply: 100VAC 50/60Hz
- Temperature adjustment range: 450℃ (maximum)
- Heater capacity: 6 stage switching (130, 210, 350, 500, 850, 1200W)
- Heating surface dimensions: φ140mm
- Consumption current: 13A
- Specification: Heater: 6 stage switching (130, 210, 350, 500, 850, 1200W) body protection function/circuit protector, Temperature f***, Heater unit excessive temperature rise prevention equipment
