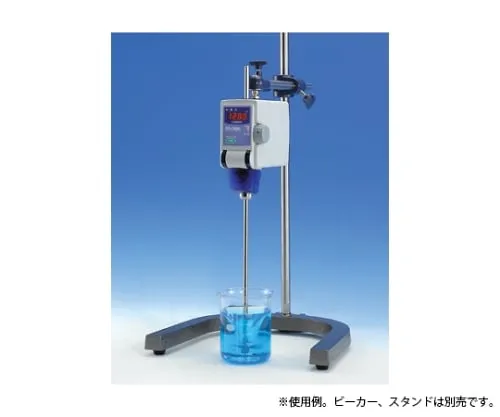

61-4427-52 Stirrer M-103 Type 050700-103
Product Description
Product Model: 61-4427-52Product Brand: SIBATA SCIENTIF […]
Contact Us
Product Details
Product Model: 61-4427-52
Product Brand: SIBATA SCIENTIFIC TECHNOLOGY LTD.
Features
- The ON/OFF and rotation speed settings *** the volume with switch method for excellent operability.
- The rotation direction can be switched with one touch during rotation.
- It is equipped with a fail-safe function that links the chuck cover with motor operation (the motor stops automatically when the chuck cover is opened).
Spec
- Quantity: 1 unit
- Type: M-103 type
- Extension: M-103 type
- Type: M-103 type
- Mass: 2.5kg
- Height (mm): 164
- Width (mm): 98
- Depth (mm): 155
- Power supply: 100VAC 50/60Hz 88VA
- Motor: DC brushless motor 30W (class B insulation/130℃)
- Rotation setting: 10 - 600rpm
- Display: Digital 4-digit display
- Setting system: Volume setting
- Maximum torque N・m (kgf・cm): 49.0 (5.0)
- Safety mechanism Thermal protector, Current limit circuit, Fail-safe function
- Attached function: Forward/reverse switch function *chuck: Collet type hand tightening zipper for φ8mm
- Accessories: Clamp x 1 piece, Stirring shaft φ8mm x 495mm x 1, Stirring blade propeller type φ50mm x 1 piece, 1 grounding adapter stand is not included in the package.
