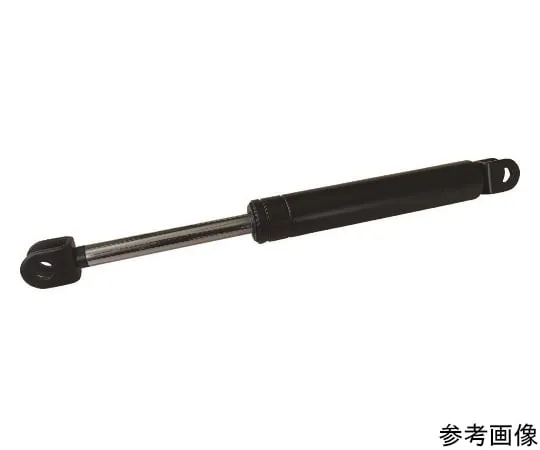

64-8579-90 Gas Spring (KHG Series) KHG100-10
Product Description
Product Model: 64-8579-90Product Brand: KYB Engineering […]
Contact Us
Product Details
Product Model: 64-8579-90
Product Brand: KYB Engineering ＆ Service
Features
- Since the spring constant is lower than that of coil springs, the spring force can be almost constant over a long compression stroke, and it has the optimum characteristics for opening and closing doors.
- With spring action and damping action, the opening/closing speed of doors can be controlled reliably.
- Opening/closing of various lids such as copier lids, v***ing machine lids, roof box lids, etc., and lifting/lowering of hanging shelves, etc.
Spec
- Stroke (mm): 100
- Total Length (mm): 325
- Length (mm): 225
- Rod Diameter: φ8 mm
- Cylinder outer diameter: Φ 18 mm
- Operating temperature range: -20 to 80 °C
- Gas Spring Type: Mounting Direction Fixed (All Gas) Type
- Mounting direction: 60 °
- Material/Finish: Steel
- Country of origin: Japan
- Securities Code: 148 -8329
*This product might require extra fees.
