63-8058-90 Wurth WE-KI Series Type 1008A Shielded Wire-wound SMD Inductor with a Ceramic Core, 100 nH Wire-Wound 1A Idc Q:60 744762210A
model:
63-8058-90
brand:
Wurth Elektronik
Product Description
Product Model: 63-8058-90Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-8058-90
Product Brand: Wurth Elektronik
Features
- Wurth 1008 WE-KI Series Wire-Wound Inductors. Wurth WE-KI Series 1008 SMD wire-wound ceramic inductors have been designed for high frequency applications. They offer the highest possible self resonant frequencies up to 12.5 GHz alongside an excellent Q factor and high thermal stability. Other applications for these ceramic inductors include wireless LAN, Bluetooth and RF transceiver/communications. Reflow soldering is recomm***ed for these products.
Spec
- Quantity:1set(2000pieces)
- Inductance:100 nH
- Maximum DC Current:1A
- Package/Case:1008A
- Length:2.5mm
- Depth:2mm
- Height:1.6mm
- Dimensions:2.5 x 2 x 1.6mm
- Shielded:Yes
- Maximum DC Resistance:180mΩ
- Series:WE-KI
- Core Material:Ceramic
- Maximum Self Resonant Frequency:1.1GHz
- Minimum Operating Temperature:-40°C
- CODE No.:163-7485
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments
63-5130-42 Wurth Elektronik B 2.0 Micro USB Connector Receptacle, Right Angle - 629105 629105136821
model: 63-5130-42
brand: Wurth Elektronik
Electronic/Electrical Parts and Controll Equipments
63-4783-33 Vishay VS-GBPC2506A, Bridge Rectifier, 25A 600V, 4-Pin GBPC-A VS-GBPC2506A
model: 63-4783-33
brand: Vishay
Electronic/Electrical Parts and Controll Equipments

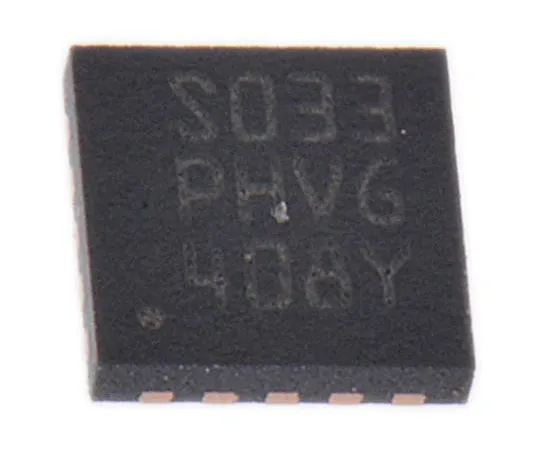

63-7994-36 STMicroelectronics STM8S003F3U6TR, 8bit STM8 Microcontroller, 16MHz, 8 kB Flash, 20-Pin UFQFPN STM8S003F3U6TR
