63-8051-77 Bourns SRR1206 Series Type E12 Shielded Wire-wound SMD Inductor with a Ferrite DR & RI Core, 22 μH Wire-Wound 3.8A Idc SRR1206-220ML
Product Description
Product Model: 63-8051-77Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-8051-77
Product Brand: Bourns
Features
- SRR1206 Series Magnetically Shielded Wire Wound Inductors. Available in E12 series Unit height of 6.5mm Current up to 6A RoHS compliant Applications in input/output of DC/DC Converters, Power Supplies
Spec
- Quantity:1set(600pieces)
- Inductance:22 μH
- Maximum DC Current:3.8A
- Package/Case:E12
- Length:12.7mm
- Depth:12.7mm
- Height:6.5mm
- Dimensions:12.7 x 12.7 x 6.5mm
- Shielded:Yes
- Maximum DC Resistance:62mΩ
- Series:SRR1206
- Core Material:Ferrite DR & RI
- Maximum Self Resonant Frequency:11MHz
- Minimum Quality Factor:21
- CODE No.:172-9751
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

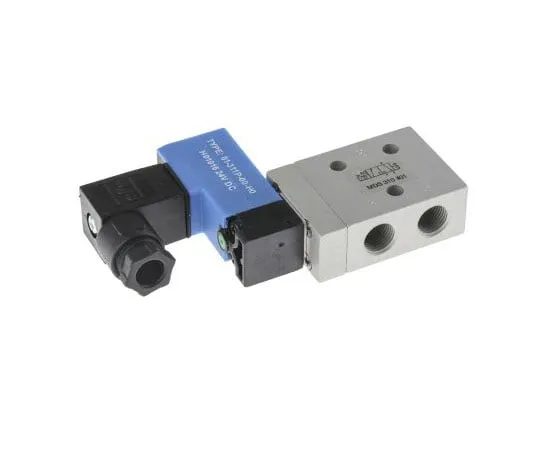

63-7972-11 RS PRO 3/2 Pneumatic Solenoid Valve Solenoid/Spring G 1/8 MDS Series 784-0048
model: 63-7972-11
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

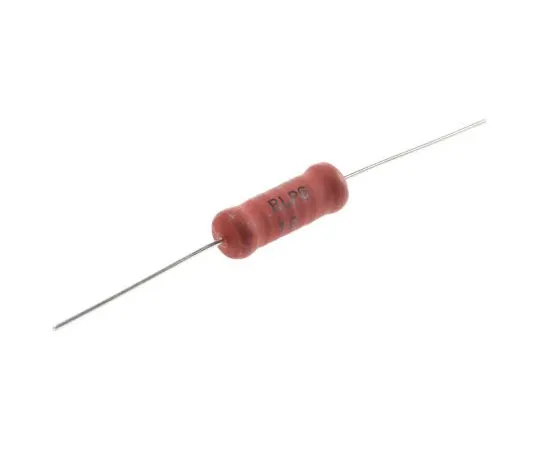

63-7984-54 Vishay 1Ω 6W Fixed Resistor ±1% ±50ppm/°C RLP061R000FB25
model: 63-7984-54
brand: Vishay
Electronic/Electrical Parts and Controll Equipments

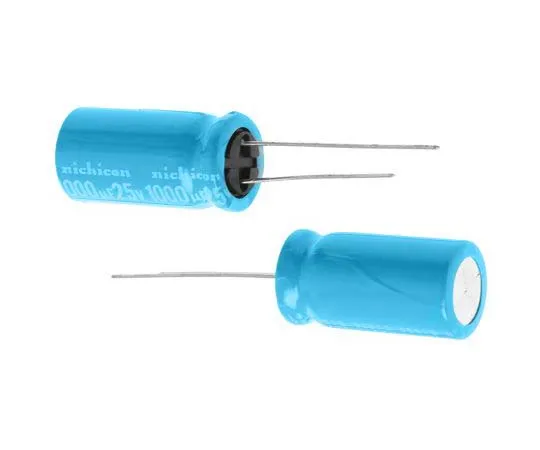

63-7814-64 Nichicon 1000μF 25V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 x 25mm +125°C 12.5mm 5mm UBT1E102MHD8
