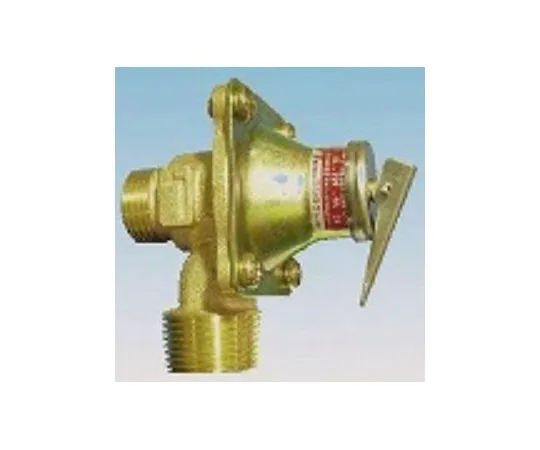

64-3830-17 Relief valve for hot water equipment AL-72F-95-20A
Product Description
Product Model: 64-3830-17Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3830-17
Product Brand: Yoshitake Inc.
Features
- It is mainly ***d as a relief valve for hot water boilers and hot water heat exchangers with operating pressures of 100 kPa or less.
- Parallel screws are ***d for the outlet connection, allowing easy piping with bag nuts.
Spec
- Specifications: JIS Display Permitted Products
- Type: Relief Valve for Water Heater
- Nominal Diameter: Listed after the model number
- fluids: chilled or hot
- Blow Start Pressure: 95 kPa (+ 4 kPa, -6 kPa)
- Blowoff pressure: 87 kPa or less
- Maximum temperature: 100 deg.
- Connection Method: JIS R 3/4 x JIS G 1/2
- valve casing: CAC
- Diaphragm: FKM (Viton)
