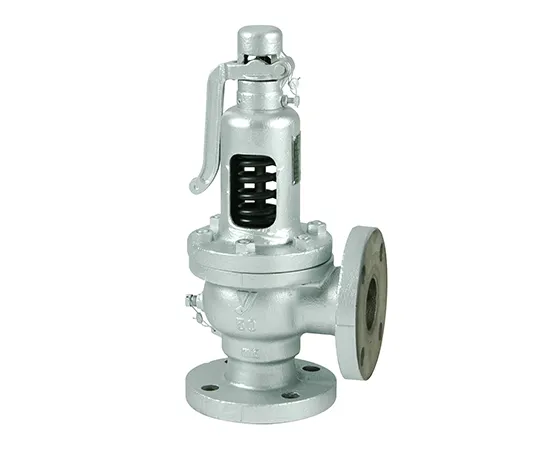

64-3829-96 FCD/CAC lifting height Safety Valve Open Type/Flange/Liver/1.0 MPa AL-5-20A
Product Description
Product Model: 64-3829-96Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3829-96
Product Brand: Yoshitake Inc.
Features
- Safety Valves for Steam Boilers, Various Pressure Vessels, Instrumentation Equipment, etc. • Adopts a valve lift lever structure and can be inspected manually at a pressure of 75% or more of the blowing pressure
Spec
- Specifications: Open Lever Type
- Type: safety relief valve
- Format: lifting height Expression
- Nominal Diameter: Listed after the model number
- Applicable Fluid: steam
- Applicable Pressure Range: 0.05 to 1.5 MPa (Valve element and valve seat CAC up to 1.0 MPa)
- Connection Method: JIS 10 KFF
- Maximum temperature: 220 deg.
- Valve Box/Spring Box: FCD 450
- Valve Body/Valve Seat: CAC/PTFE (Fluorine Plastic)
