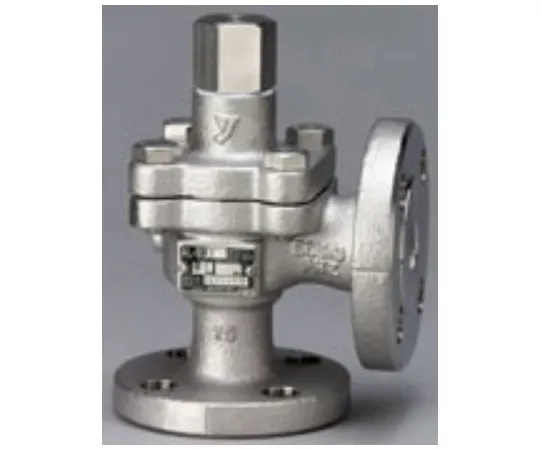

64-3829-13 SCS/SUS Lift safety Valve Flange AL-31-15A
Product Description
Product Model: 64-3829-13Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3829-13
Product Brand: Yoshitake Inc.
Features
- Made of all stainless steel for excellent corrosion resistance and durability
Spec
- Specifications: SCS, MAX 1.0 MPa
- Type: safety relief valve
- Format: lifting height Expression
- Nominal Diameter: Listed after the model number
- Applicable fluids: steam, Air, Cold water, Oil
- Applicable Pressure Range: 0.05 to 1.0 MPa
- Connection Method: JIS 10 KRF
- Maximum temperature: 220 ° C (Up to 150 ° C for liquids)
- Valve Box/Spring Box: SCS
- Valve Body/Valve Seat: SUS
