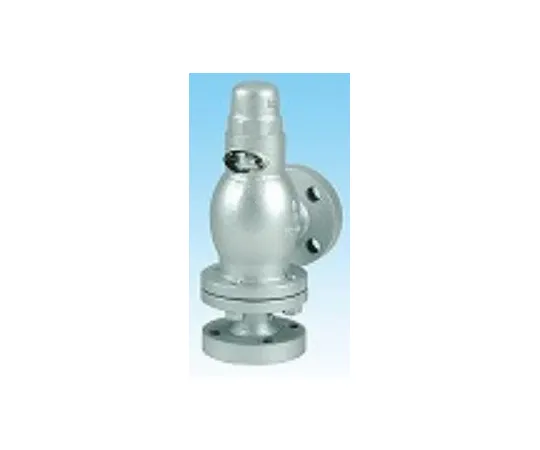

64-3828-52 FCD/SUS Lift safety Valve Sealed, Flange, PTFE AL-301T-15AX0.1MPa
Product Description
Product Model: 64-3828-52Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3828-52
Product Brand: Yoshitake Inc.
Features
- Safety Relief Valve after Decompression
- Safety Valves for Small Boilers, Various Pressure Vessels, and Instrumentation Equipment
- Pump Relief Valve
- Main Part Made of Stainless Steel, Uses Fluororesin Disc for Valve Part to Ensure Stopping
Spec
- Specifications: Sealed Type, Gas/Liquid, Main Part SUS
- Type: safety relief valve
- Format: lifting height Expression
- Nominal Diameter: Listed after the model number
- Applicable fluids: Air, cold or hot water, oil
- Applicable Pressure Range: 0.05 to 1.3 MPa (If you have 1.31 MPa or more, please contact us.)
- Connection Method: JIS 10 KFF
- Maximum temperature: 150 deg.
- Valve Box/Spring Box: FCD 450
- Valve Body/Valve Seat: SUS/PTFE (Fluorine Plastic)
