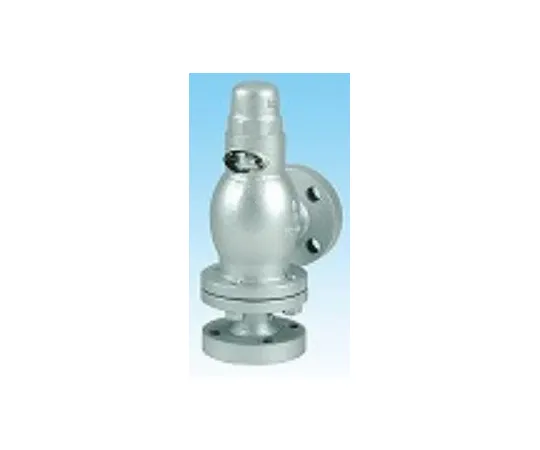

64-3827-31 FCD/CAC lifting height Safety Valve Sealed, Flange, PTFE AL-300T-15AX0.1MPa
Product Description
Product Model: 64-3827-31Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3827-31
Product Brand: Yoshitake Inc.
Features
- Safety Relief Valve after Decompression
- Safety Valves for Small Boilers, Various Pressure Vessels, and Instrumentation Equipment
- Relief Valve for Pumps
- Uses a Fluororesin Disk in the Valve Part to Ensure Stopping
Spec
- Specifications: Sealed, Gas/Liquid
- Type: safety relief valve
- Format: lifting height Expression
- Nominal Diameter: Listed after the model number
- Applicable fluids: Air, cold or hot water, oil
- Applicable Pressure Range: 0.05 to 1.0 MPa
- Connection Method: JIS 10 KFF
- Maximum temperature: 150 ° C (Up to 120 ° C for liquids)
- Valve Box/Spring Box: FCD 450
- Valve Body/Valve Seat: CAC/PTFE (Fluorine Plastic)
