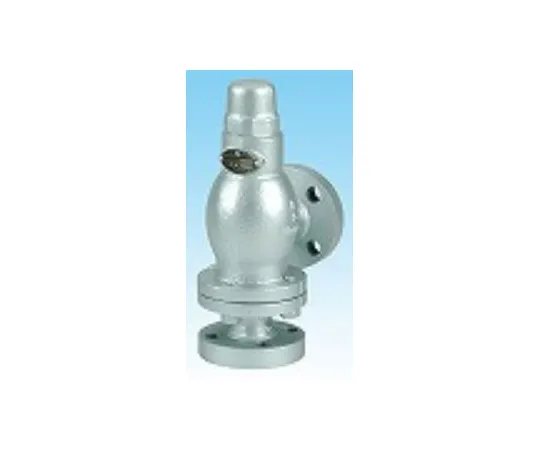

64-3826-64 FCD 450/SUS pumps Relief Valve Flange/1.0 MPa/Cold/Hot Water/Oil AL-280-15A
Product Description
Product Model: 64-3826-64Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3826-64
Product Brand: Yoshitake Inc.
Features
- The AL-280 type relief valve is a dedicated pump relief valve for pressure control of pumps with large pulsating and fluctuating pressures.
- The structure of the valve body and the valve seat is such that it is continuously discharged against the pressure change of the fluid without popping operation.
- Stainless steel with good corrosion resistance is ***d for the adjustment spring.
Spec
- Type: AL -280
- Structure: Sealed
- Applicable fluids: Cold water, Oil (Heavy oil A, heavy oil B, kerosene)
- Applicable Pressure Range: 0.05 to 1.0 MPa
- applied temperature range: 5 to 120 ° C
- Connection: JIS 10 KFF Flange
- Nominal Diameter: Listed after the model number
- spring box: nodular graphite cast iron
- Valve Body: Stainless Steel
- Valve seat: Stainless steel
- Adjusting Spring: Stainless Steel
- Gasket: Non-Assisted Gasket
