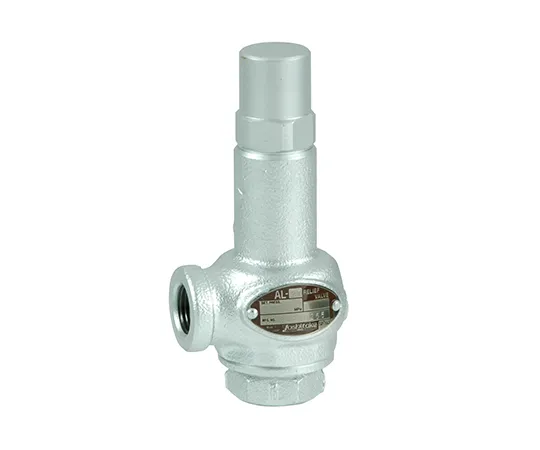

64-3826-16 FCD/SUS Lift Safty Valve, Screwed, 1.6 MPa AL-27-15AX0.1MPa
Product Description
Product Model: 64-3826-16Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3826-16
Product Brand: Yoshitake Inc.
Features
- Stable operation against back pressure changes during continuous blowing
- Adoption of dashpot structure ideal for lines with large pulsations and pressure fluctuations
- Compatible with set pressure up to MAX1.6MPa
Spec
- Specifications: pumps Relief, MAX 1.6 MPa
- Type: pumps Relief Valve
- Format: lifting height Expression
- Nominal Diameter: Listed after the model number
- Applicable fluids: Cold water, Oil (20 cSt or less)
- Applicable Pressure Range: 0.05 to 1.6 MPa
- Connection Method: JIS Rc
- Maximum temperature: 120 deg.
- Spring Box: FCD 450
- Valve Body/Valve Seat: SUS
