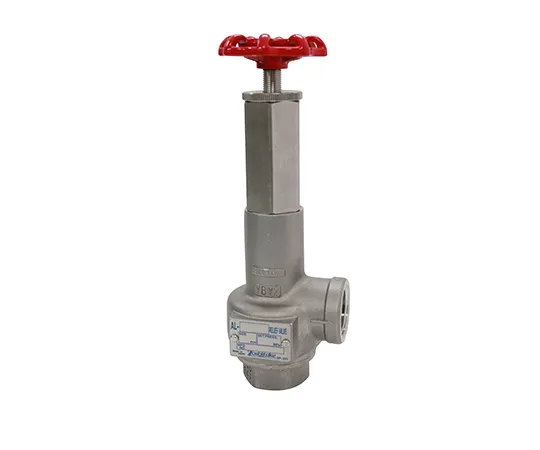

64-3825-71 Lift Safty Valve Screwed, Handle AL-250R-15A
Product Description
Product Model: 64-3825-71Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3825-71
Product Brand: Yoshitake Inc.
Features
- Handle type makes it easy to change the pressure
- Made of all stainless steel, excellent corrosion resistance and durability
- Uses dashpot structure, ideal for lines with high pulsation and pressure fluctuation
Spec
- Specifications: pumps Relief Handle Type
- Type: pumps Relief Valve
- Format: lifting height Expression
- Nominal Diameter: Listed after the model number
- Fluid: chilled or hot, oil (20 cSt or less)
- Set Pressure: 0.05 to 1.0 MPa
- Connection Method: JIS Rc
- Maximum temperature: 90 deg.
- spring box: SCS
- Valve Body/Valve Seat: SUS
