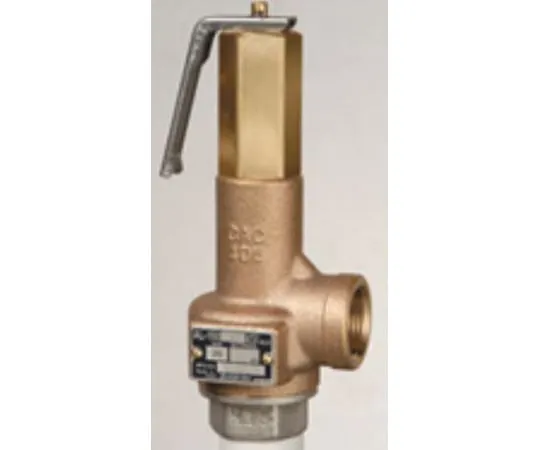

64-3824-74 Sealed Safety Valve, Lever Type, Screwed, NPb Treatment AL-150TML-N-15A
Product Description
Product Model: 64-3824-74Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3824-74
Product Brand: Yoshitake Inc.
Features
- Water Code compliant product (E-626)
- Lift valve lever type allows manual blowing inspection
- Adjustable spring is made of stainless steel (SUS304) and long life
- Main part (Valve body and valve seat) is SCS14A and has excellent corrosion resistance
- Uses soft sheet for main part and has excellent valve seat airtightness
- No external leakage due to hermetically sealed structure
Spec
- Specifications: Sealed lever type, soft sheet type
- Type: safety relief valve
- Format: lifting height Expression
- Nominal Diameter: Listed after the model number
- fluids: chilled or hot
- Set Pressure: 0.05 to 1.0 MPa
- Connection Method: JIS Rc
- Maximum temperature: 100 deg.
- Spring Box: CAC 406
- Valve Body/Valve Seat: SCS 14 A (FKM)
