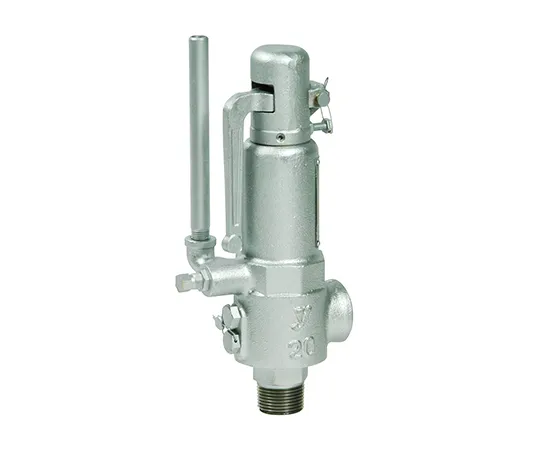

64-3824-18 FCD/SUS Full bore Safety Valve Open Type/Screwed/Lever AF-1-20A
Product Description
Product Model: 64-3824-18Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3824-18
Product Brand: Yoshitake Inc.
Features
- Safety Valve after Pressure Reduction Valve for Steam Boilers, Various Pressure Vessels, Instrumentation Equipment, etc.
- Lift valve lever structure is adopted, and manual blowing inspection is possible at a pressure of 75% or more of the blowing pressure.
Spec
- Specifications: Open Lever Type, MAX 1.6 MPa
- Type: Safety Valves
- Type: Total
- Nominal Diameter: Listed after the model number
- Applicable Fluid: steam
- Applicable Pressure Range: 0.18 to 1.6 MPa
- Connection Method: Inlet JIS R Outlet JIS Rp
- Maximum temperature: 220 deg.
- Valve Box/Spring Box: FCD 450
- Valve Body/Valve Seat: SUS
