Electronic/Electrical Parts and Controll Equipments
63-8042-12 Kompakt LED Beacon Tower, 2 Light Elements, Green, Red, 24 V ac/dc 69812075
Product Description
Product Model: 63-8042-12Product Brand: Werma Features […]
Contact Us
Product Details
Product Model: 63-8042-12
Product Brand: Werma
Features
- Kompakt 37 LED Signal Tower. The KOMPAKT 37 is a slim-line LED signal tower available in two versions, either in a black housing with coloured lens or in a metal finish with a clear lens. The coloured lens signal towers have coloured LEDs which provide maximum colour intensity, making them particularly effective in lower light environments. In bright sunlight however it can be difficult to see the difference between a coloured lens and an illuminated coloured lens. This is where the clear lens signal tower comes into its own as it is only coloured when in the ‘ON ‘ position, therefore ensuring it is not mistaken as being illuminated when it is in the ‘Off ‘ position. Thanks to a diameter of just 37.5 mm the KOMPAKT 37 is ideally suited to applications on small machines and equipment with limited space. Also available are versions with a 85dB buzzer integrated into the cap of the signal tower which provide an additional audible warning. Pre-assembled signal tower with max. 5 tiers Each light tier has 8 LEDs LED permanent light With or without buzzer With M12 plug or cable connection IP65 protection Up to 50,000 hours of life with very low power consumption Maintenance free LEDs
Spec
- Quantity:1piece
- Series:Kompakt
- Number of Light Elements:2
- Lens Colour:Green, Red
- Bulb Type:LED
- Light Effect:Steady
- Sounder Component:No Sounder Component
- Mounting Style:Base Mount
- Height:140.5mm
- Base Diameter:37.5mm
- Connection Cable Length:2m
- Connection Type:Cable
- Housing Colour:Black
- CODE No.:849-5374
Related product recommendations
You may also be interested in the following products
63-4743-54 TE Connectivity Ultra-Fast .250 Series Insulated Crimp Flag Terminal, 1.3mm² to 2mm², 16AWG to 14AWG, Blue, Tin Plated 3-520133-2
model: 63-4743-54
brand: TE Connectivity
63-7619-17 RS Grey Halogen Free Heat Shrink Tubing 4.8mm Sleeve Dia. x 1.2m Length 2:1 Ratio 537-8005
model: 63-7619-17
brand: RS PRO

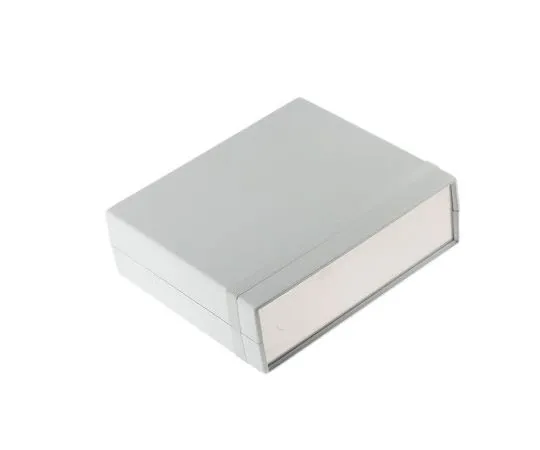

63-7962-07 ABS & aluminium Project Box, Grey, 180 x 206 x 64mm 1598DGY
