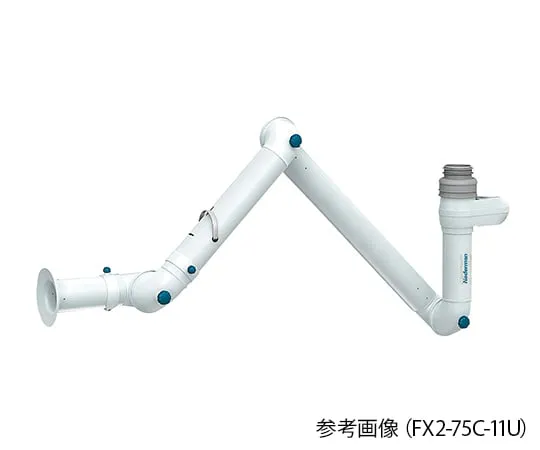

3-3671-26 Bench top arm system (FX2 Arm Series) chemical type FX2-75C-11D
Product Description
Product Model: 3-3671-26Product Brand: Yamada Corporati […]
Contact Us
Product Details
Product Model: 3-3671-26
Product Brand: Yamada Corporation
Features
- The self-holding arm allows you to adjust the hood position according to your work.
- Arm length and arm type can be selected according to the installation environment and usage conditions, and can be mounted on ceilings, walls and floors.
- It ***s anodized aluminum tubes and highly corrosion-resistant plastic (polypropylene resin), and is suitable for fine particles in the pharmaceutical, bio-chemical, and gas and equipment exhaust heat.
Spec
- FX2 Arm 75 C Chemical
- Aperture x Total length (mm): Φ 75 x 1100
- Weight (kg): 3.2
- chemical type
- material: Tube/Aluminum (Anodization and Melamine Plastic coating), Joint/PPGF, Duct Connector/EPDM
- Recomm***ed air volume (m3/h): 110 to 240
- Maximum allowable negative pressure (Pa): 3500
- Operating temperature (° C): -10 to 70
- duct connections: up direction
