3-3661-01 KOKENLAMINAR MS-01 50Hz MS-0150Hz
Product Description
Product Model: 3-3661-01Product Brand: KOKEN LTD. Featu […]
Contact Us
Product Details
Product Model: 3-3661-01
Product Brand: KOKEN LTD.
Features

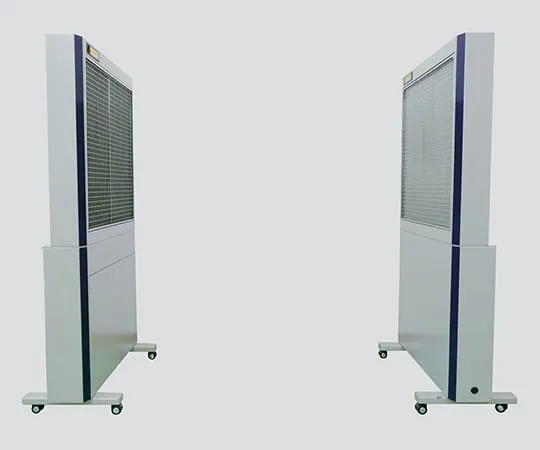

- Suitable for table work, measuring work, small item painting, etc.
- A slim and compact type that doesn't take up much space.
- Push hood is indep***ent type with built-in fan.
Spec
- Model number: MS-01 50Hz
- Width x Depth x Height (mm): 800 x 180 x 1510
- Wind velocity range: 0.3 to 0.6 m/s (4 stages switching)
- Distance opposed: within 1.5 m
- Dimensions: 700 × 700 mm (common push pull)
- Weight: Push food / about 57 kg, pull food / about 47 kg
- air volume Range: Push Food / 8 to 20 m3/min Pull Food / 15 to 20 m3/min
- rating Power Consumption: 50Hz / 145 W, 60Hz / 186 W
- power supply: Single Phase 100 V 50 / 60Hz
- air volume Range (reference value): 8 to 20 m3/min
- Ventilation distance: within 1.5 m
- main body material: Steel plate baked paint (some stainless steel)
- * Shipping, carrying, installation and assembly costs are required separately. Please contact us
- * There is no fan in the pull hood
- * Separate exhaust fan and duct work are required for pull food.
