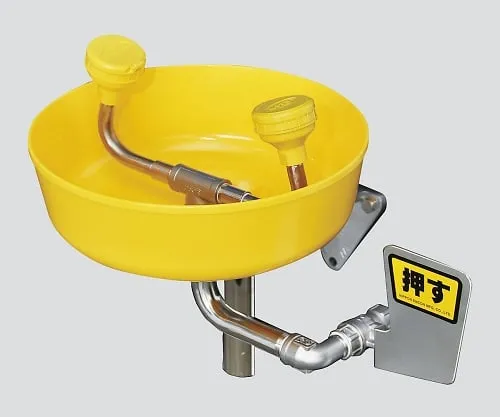

3-3652-01 Eye Washer for Emergency Use with Bowl 304
Product Description
Product Model: 3-3652-01Product Brand: Nippon Encon Man […]
Contact Us
Product Details
Product Model: 3-3652-01
Product Brand: Nippon Encon Manufacturing Co., Ltd.
Features
- Supports the global standard ANSI Z358.1.
- Easy piping connection at the installation site.
- Flow control rubber is built into the pipe of the eyewash to control the flow rate.
Spec
- Model number: 304
- Bowl size (mm): 274
- overall height (mm): 290
- material
- eye wash Bowl eye wash Head: ABS Plastic
- Piping section: stainless SUS304
- Water supply port: PT 1/2 (15 A)
- Drainage port: 1B (25 A) pipe (304 chisel)
- Design pressure and design temperature: 0.6 MPaG 60 ° C
- Operation pressure / Operation temperature: 0.21 MPaG 16 to 38 ° C
- Weight: 304 / kg, 401 / 1.5 kg
- * Installation and plumbing work is required
- * There are other types of emergency eye wash equipment. Please contact us.
