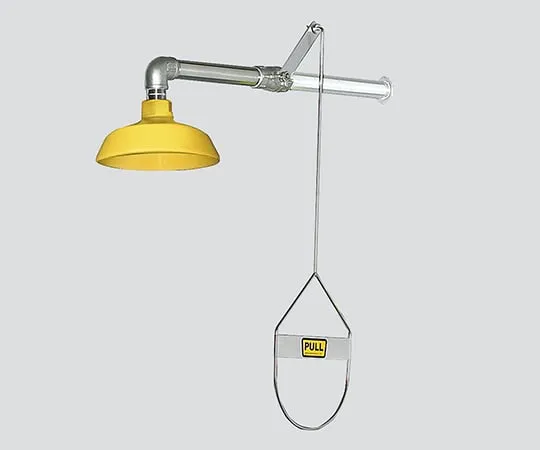

3-3651-01 Shower for Emergency Use 530-3
Product Description
Product Model: 3-3651-01Product Brand: Nippon Encon Man […]
Contact Us
Product Details
Product Model: 3-3651-01
Product Brand: Nippon Encon Manufacturing Co., Ltd.
Features
- Supports the global standard ANSI Z358.1.
- Since it is a JIS standard, it is easy to connect pipes at the installation site.
- Since it is fixed to the wall surface, the area below the shower is neat.
- A shower head with a large hole is ***d to reduce impact.
Spec
- Model number: 530 -3
- Shower head (mm): φ 212
- Length (mm): 745
- material
- Showerhead: ABS Plastic
- Nipple valve arm, rod, piping: stainless steel (SUS304)
- Elvo Ball Valve: SCS 13
- Weight: About 4kg
- Design pressure and design temperature: 0.6 MPaG 60 ° C
- Operation pressure / Operation temperature: 0.21 MPaG 16 to 38 ° C
- connection port diameter: PT1B (25 A)
- Fluid ***d: Drinking water
- * Installation and water supply connection work is required
- * There are other emergency showers. Please contact us.
