63-8034-85 IRLL2705TRPBF N-Channel MOSFET, 5.2 A, 55 V HEXFET, 3+Tab-Pin SOT-223 Infineon IRLL2705TRPBF
Product Description
Product Model: 63-8034-85Product Brand: Infineon Featur […]
Contact Us
Product Details
Product Model: 63-8034-85
Product Brand: Infineon
Features
- N-Channel Power MOSFET 55V, Infineon. Infineon's range of discrete HEXFET® power MOSFETs includes N-channel devices in surface mount and leaded packages and form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.
Spec
- Quantity:1set(2500pieces)
- Channel Type:N
- Maximum Continuous Drain Current:5.2 A
- Maximum Drain Source Voltage:55 V
- Maximum Drain Source Resistance:65 mΩ
- Maximum Gate Threshold Voltage:2V
- Minimum Gate Threshold Voltage:1V
- Maximum Gate Source Voltage:-16 V, +16 V
- Package Type:SOT-223
- Mounting Type:Surface Mount
- Pin Count:3 + Tab
- Channel Mode:Enhancement
- Category:Power MOSFET
- Maximum Power Dissipation:2.1 W
- Typical Gate Charge @ Vgs:32 nC @ 10 V
- CODE No.:168-8747
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7629-09 RS Pro 3 wire PT100 Sensor, -50°C min +250°C max, 100mm Probe Length x 8mm Probe Diameter 547-7714
model: 63-7629-09
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-4921-63 Metal Oxide Film Resistor MOS1 Series 15 Ω 1 W ± 1% MOS1CT52A15R0F
model: 63-4921-63
brand: KOA
Electronic/Electrical Parts and Controll Equipments

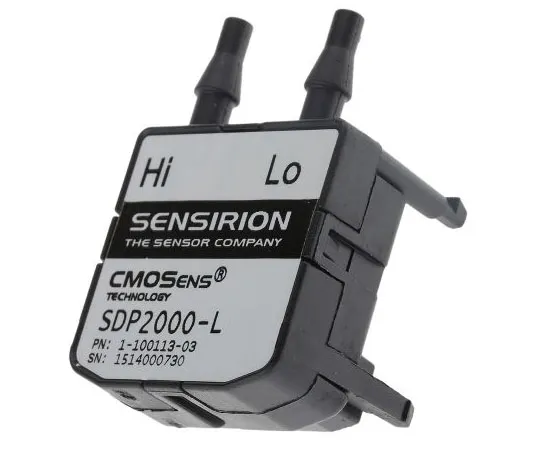

63-7964-20 Sensirion Differential for Air, Non-Aggressive Gas Pressure Sensor, 3500Pa Max Pressure Reading , 4.75 → 5.25 V, SDP2000-L
