63-8032-25 Thermocouple & Extension Wire Type N, -10 → +105 °C 2 Core PVC Sheath 50m 827-5631
Product Description
Product Model: 63-8032-25Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-8032-25
Product Brand: RS PRO
Features
- PVC Flat Pair Thermocouple Cables. Stranded conductors available, either 7/0.2mm, 13/0.2mm or 23/0.2mm Compensating types VX (KCB) ; U (RCA) for types K ; R/S thermocouples respectively Insulation rating -10°C to 105°C. These PVC insulated flat pair extension and compensating cables are available for thermocouple types E, J, K, T ; N. The general purpose thermocouple cables are both highly flexible and waterproof. Also available in 10m, 25m, 100m and 200m lengths.
Spec
- Quantity:1piece
- Thermocouple Type:N
- Number of Cores:2
- Length:50m
- Minimum Operating Temperature:-10°C
- Maximum Operating Temperature:+105°C
- Core Strands:7/0.2 mm
- Insulation Material:PVC
- Cable Shape:Flat Pair
- Number of Strands:7
- Size of Strands:0.2 mm
- Standards Met:IEC 584-3, RoHS Compliant
- CODE No.:827-5631
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

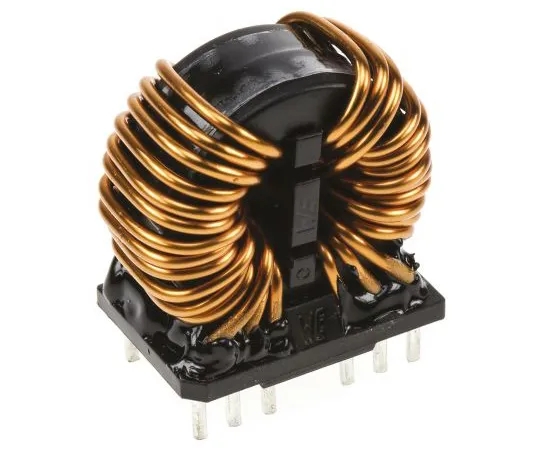

64-1380-48 Wurth 2 x 2.5 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 25A Idc, 2 x 7448052502
