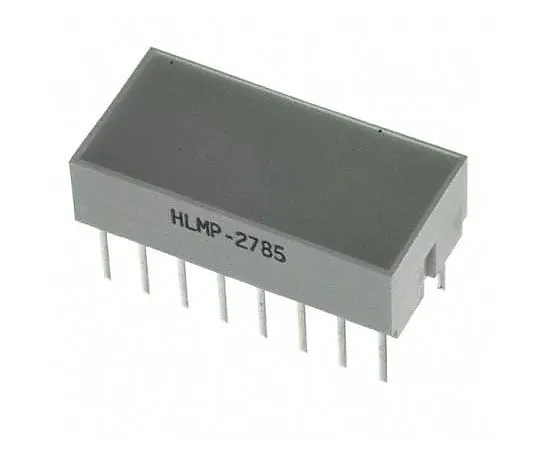

63-4558-04 HLMP-2785-EF000 Broadcom Light Bar LED Display, Yellow 70 mcd HLMP-2785-EF000
Product Description
Product Model: 63-4558-04Product Brand: Broadcom Featur […]
Contact Us
Product Details
Product Model: 63-4558-04
Product Brand: Broadcom
Features
- Observe Anti-static precautions when handling devices. Broadcom HLCP-X100 and HLMP-2XXX Light Bar Arrays. The HLCP-X100 and HLMP-2XXX range of LED light bars are available in a range of sizes and colours. These LED light bars are ideal for applications which require a bright and uniform light. HLCP-X100 and HLMP-2XXX light bars have either single or segmented light emitting areas which offer a good on-off contrast. Suitable applications for the HLCP-X100 and HLMP-2XXX light bars include; telecommunications indicators, front panel status indicators and bar graphs.. Features of the HLCP-X100 and HLMP-2XXX LED light bars: Rectangular LES (single or segment) Uniform light emitting area X-Y stackable Flush mountable
Spec
- Quantity：1piece
- Display Type : Light Bar
- LED Colours : Yellow
- Number of Segments : 1
- Dominant Wavelength : 585 nm
- Mounting Type : Through Hole
- External Depth : 6.2mm
- Luminous Intensity : 70 mcd
- Colour of Face : White
- Forward Voltage : 2.1 V
- CODE No.:109-400
