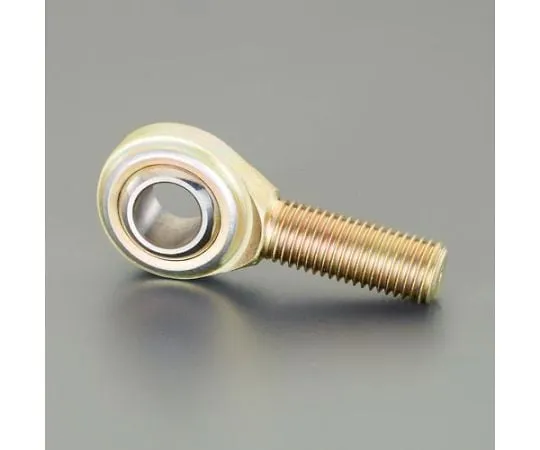

64-7968-97 Rod End (no lubrication type/Male Screw/Left Screw) M5 x P 0.8 EA966DG-5A
model:
64-7968-97
category:
suctioncupmask
Product Description
Product Model: 64-7968-97 Spec screw : M5 Sizes (mm): A […]
Contact Us
Product Details
Product Model: 64-7968-97
Spec
- screw : M5
- Sizes (mm): A: 5, B: 8, C: 33 and D: 16.
- material: Housing: Structural Carbon Steel (S 35 C Surface galvanizing) Insert: Teflon (PTFE) Ball: High-Carbon Chrome Bearing Steel (SUJ2HRC 58 or More)
- Shaft Hole Diameter: 5 mm
- Weight ( g ) : 14
- Radial Force: 590 kgf
- Axial Load: 230 kgf
- pitch : 0.8 mm
- left-hand thread
- oilless type
