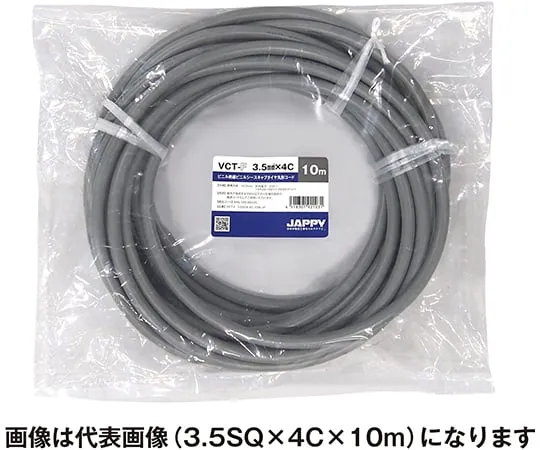

64-6388-66 Cabtyre Round Cord Gray 10 m VCT-F5.5SQX2C10MJP
Product Description
Product Model: 64-6388-66Product Brand: JAPPY Features […]
Contact Us
Product Details
Product Model: 64-6388-66
Product Brand: JAPPY
Features
- Can be ***d as a power cord for small appliances under 300 V for indoor ***.
Spec
- Conductor configuration: 70 pieces/0.32 mm
- Conductor outer diameter: 3.1 mm
- insulation Normal Thickness: 0.8 mm
- Sheath Normal Thickness: 1.0 mm
- Sheath Color: Gray
- Finished outer diameter: 11.5 mm
- Operating temperature (maximum): 60 degrees C
- Operating temperature (minimum fixed): -25 degrees C
- Operating temperature (minimum travel): -15 degrees C
- Allowable Current: 35 A
- Conductor Resistance: 3.37 ohms/km
- b*** radius: over 69 mm
