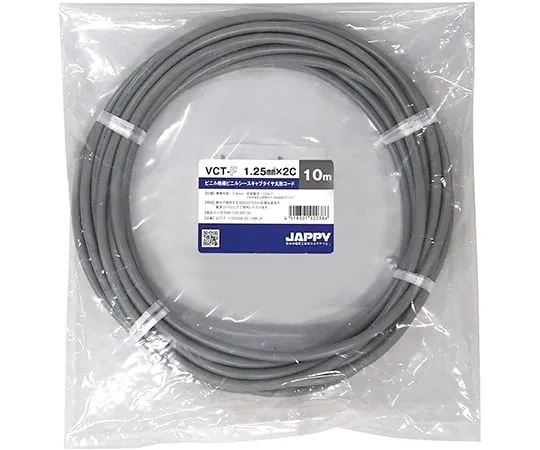

64-6387-97 Cabtyre Round Cord Gray 10 m VCT-F1.25SQX2C10MJP
Product Description
Product Model: 64-6387-97Product Brand: JAPPY Features […]
Contact Us
Product Details
Product Model: 64-6387-97
Product Brand: JAPPY
Features
- Can be ***d as a power cord for small appliances under 300 V for indoor ***.
Spec
- Conductor configuration: 50 pieces/0.18 mm
- Conductor outer diameter: 1.5 mm
- insulation Normal Thickness: 0.6 mm
- Sheath Normal Thickness: 1.0 mm
- Sheath Color: Gray
- Finished outer diameter: 7.4 mm
- Operating temperature (maximum): 60 degrees C
- Operating temperature (minimum fixed): -25 degrees C
- Operating temperature (minimum travel): -15 degrees C
- Allowable Current: 12 A
- Conductor Resistance: 15.1 ohms/km
- b*** radius: over 45 mm
