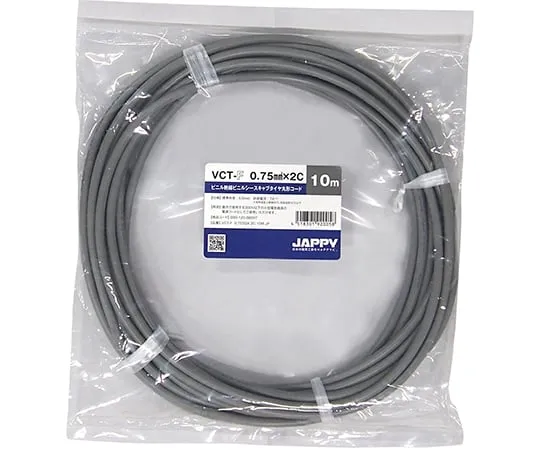

64-6387-64 Cabtyre Round Cord Gray 10 m VCT-F0.75SQX2C10MJP
Product Description
Product Model: 64-6387-64Product Brand: JAPPY Features […]
Contact Us
Product Details
Product Model: 64-6387-64
Product Brand: JAPPY
Features
- Can be used as a power cord for small appliances under 300 V for indoor use.
Spec
- Conductor configuration: 30 pieces/0.18 mm
- Conductor outer diameter: 1.1 mm
- insulation Normal Thickness: 0.6 mm
- Sheath Normal Thickness: 1.0 mm
- Sheath Color: Gray
- Finished outer diameter: 6.6 mm
- Operating temperature (maximum): 60 degrees C
- Operating temperature (minimum fixed): -25 degrees C
- Operating temperature (minimum travel): -15 degrees C
- Allowable Current: 7A
- Conductor Resistance: 25.1 ohms/km
- bend radius: over 40 mm
