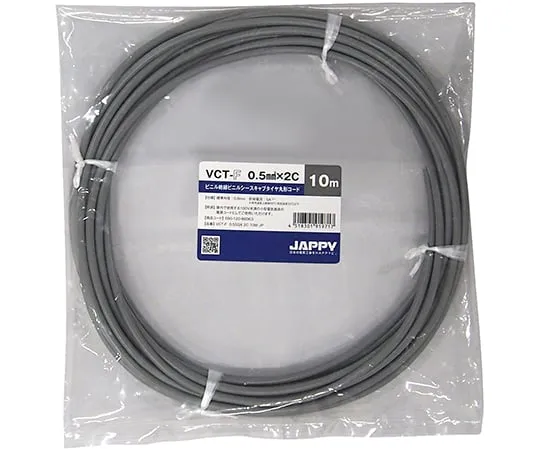

64-6387-30 Cabtyre Round Cord Gray 10 m VCT-F0.5SQX2C10MJP
Product Description
Product Model: 64-6387-30Product Brand: JAPPY Features […]
Contact Us
Product Details
Product Model: 64-6387-30
Product Brand: JAPPY
Features
- Can be used as a power cord for small appliances under 100 V for indoor use.
Spec
- Conductor configuration: 20 pieces/0.18 mm
- Conductor outer diameter: 0.9 mm
- insulation Normal Thickness: 0.5 mm
- Sheath Normal Thickness: 1.0 mm
- Sheath Color: Gray
- Finished outer diameter: 5.8 mm
- Operating temperature (maximum): 60 degrees C
- Operating temperature (minimum fixed): -25 degrees C
- Operating temperature (minimum travel): -15 degrees C
- Allowable Current: 5 A
- Conductor Resistance: 37.8 ohms/km
- bend radius: over 35 mm
