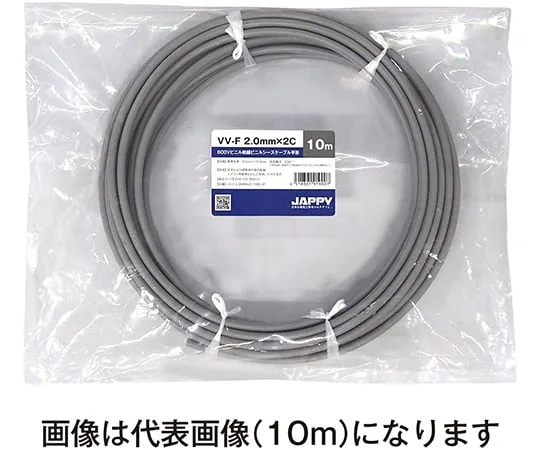

64-6386-57 V Insulation V Sheath Cable Gray 5m VV-F2.0MMX2C5MJP
Product Description
Product Model: 64-6386-57Product Brand: JAPPY Features […]
Contact Us
Product Details
Product Model: 64-6386-57
Product Brand: JAPPY
Features
- Can be ***d for indoor wiring of ho***s and buildings, wiring for air conditioners, etc.
Spec
- insulation Normal Thickness: 0.8 mm
- Sheath Normal Thickness: 1.5 mm
- Sheath Color: Gray
- Finish outer diameter (minor diameter): 6.6 mm
- Finish outer diameter (Long Distance): 10.2 mm
- Operating temperature (maximum): 60 degrees C
- Operating temperature (minimum fixed): -25 degrees C
- Operating temperature: (minimum travel): -15 degrees C
- Allowable Current: 23 A
- Conductor Resistance: 5.65 ohms/km
- b*** radius (minor diameter): over 40 mm
- b*** radius (Long Distance): 62 mm or more
Related product recommendations
You may also be interested in the following products
suctioncupmask
64-5667-67 Unit Type Switching Power Supply 396 W 3.3 V HWS600-3
model: 64-5667-67
brand: TDK-Lambda Corporation
suctioncupmask

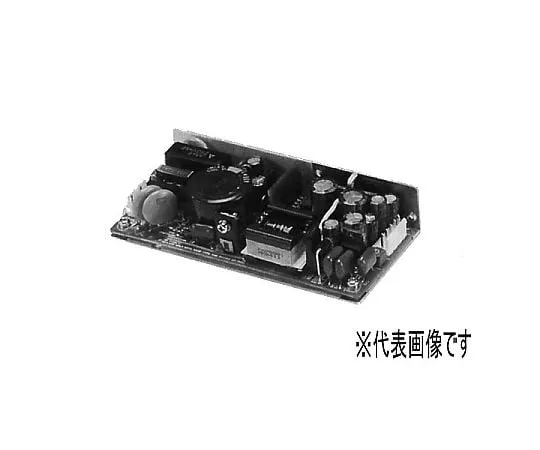

64-5668-25 ［Discontinued］Unit Type Switching Power Supply LWT-H Sili LWT15H-522
