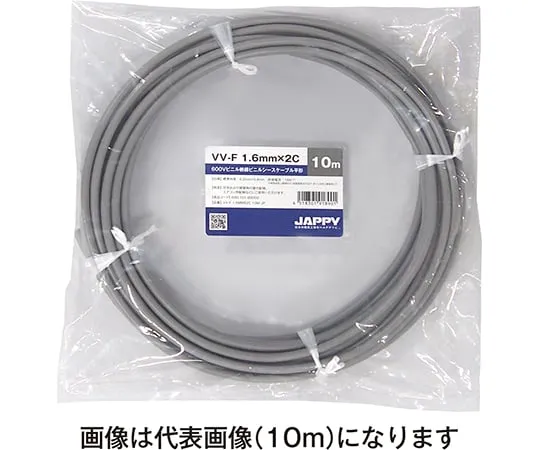

64-6386-47 V Insulation V Sheath Cable Gray 5m VV-F1.6MMX2C5MJP
Product Description
Product Model: 64-6386-47Product Brand: JAPPY Features […]
Contact Us
Product Details
Product Model: 64-6386-47
Product Brand: JAPPY
Features
- Can be ***d for indoor wiring of ho***s and buildings, wiring for air conditioners, etc.
Spec
- insulation Normal Thickness: 0.8 mm
- Sheath Normal Thickness: 1.5 mm
- Sheath Color: Gray
- Finish outer diameter (minor diameter): 6.2 mm
- Finish outer diameter (Long Distance): 9.4 mm
- Operating temperature (maximum): 60 degrees C
- Operating temperature (minimum fixed): -25 degrees C
- Operating temperature: (minimum travel): -15 degrees C
- Allowable Current: 18 A
- Conductor Resistance: 8.92 ohms/km
- b*** radius (minor diameter): over 38 mm
- b*** radius (Long Distance): 57 mm or more
