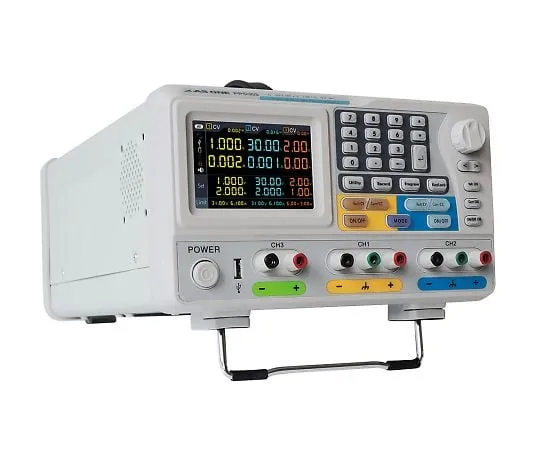

4-558-01-24 Program Multi-Output Power Supply with JCSS Calibration Certificate PPS303
Product Description
Product Model: 4-558-01-24Product Brand: AS ONE Corpora […]
Contact Us
Product Details
Product Model: 4-558-01-24
Product Brand: AS ONE Corporation
Features
- The data obtained by the data recording function can be displayed on the screen as tables and graphs.
- Low ripple, low noise.
- 3 indep***ent channels, parallel connection and series connection are possible.
- The three channels can be controlled indep***ently.
- You can create graphs and tables based on the recorded data.
- 100 steps can be registered.
Spec
- Output Channels: 3
- Voltage/Current: CH1/2/0~30 V/0~3 A, CH3/0~6 V/0~3 A
- Setting resolution: voltage/1mV, current/1mA
- Constant Voltage Characteristics: Input Variation/≦0.01%+3 mV, Load Variation/≦0.01%+3 mV, Ripple & Noise (20 Hz~20 MHz)/≦1mVrms
- Constant Current Characteristics: Input Fluctuation/≤ 0.01%+3 mA, Load Fluctuation/≤ 0.01%+3 mA, Ripple & Noise (20 Hz~20 MHz)/≤ 5mArms
- Maximum output power: 198 W
- Interface: USB, RS232, LAN
- Function: Overcurrent/Overvoltage protection function
- Display: 4 "color LCD 480 x 320 pixels
- Power: 110VAC±10% AC input 50/60Hz
- Size: 250 x 358 x 158 mm
- Weight: Approx. 9.8 kg
- Calibration item: DC voltage, DC current channel 1 point
