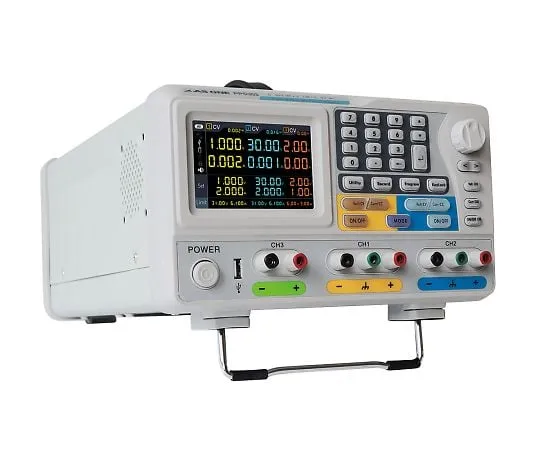

4-558-01 Program Multioutput Power Supply PPS303
Product Description
Product Model: 4-558-01Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 4-558-01
Product Brand: AS ONE Corporation
Features
- Data acquired by the data recording function can be displayed on the screen as a table or graph.
- Low ripple, low noise.
- Three indep***ent channels, parallel and serial connections are possible.
- The three channels are indep***ently controllable.
- You can create graph tables from the recorded data.
- 100 steps can be registered.
Spec
- Number of output channels: 3
- Voltage/Current: CH1･2/0 to 30 V/0 to 3A, CH3/0 to 6 V/0 to 3A
- Setting Resolution: Voltage/1mV, Current/1mA
- Constant voltage characteristics: input variation/≦ 0.01% + 3 mV, load variation/≦ 0.01% + 3 mV, ripple & noise (20Hz to 20 MHz)/≦ 1 mVrms
- Constant current characteristics: input variation/≦ 0.01% + 3 mA, load variation/≦ 0.01% + 3 mA, ripple & noise (20Hz to 20 MHz)/≦ 5 mArms
- Maximum output power: 198 W
- Interface: USB, RS 232, LAN
- Function: Overcurrent and overvoltage protection function
- Display: 4-inch color LCD 480 x 320 pixels
- Power supply : 110 VAC ±10% AC input 50/60Hz
- Size: 250 x 358 x 158mm
- Weight: about 9.8kg
