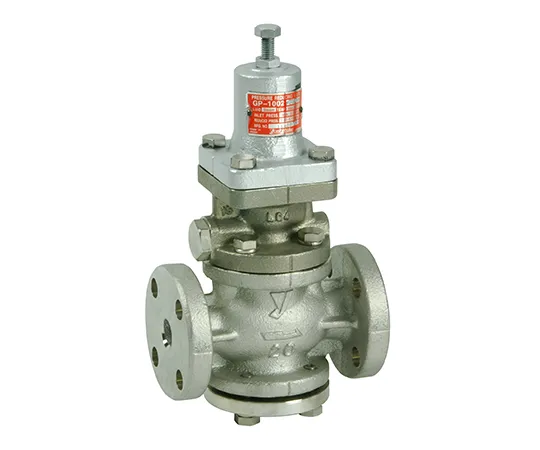

64-3821-03 Wetted SUS Pressure reducing valve Flange steam GP-1000SS-15A
Product Description
Product Model: 64-3821-03Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3821-03
Product Brand: Yoshitake Inc.
Features
- Has excellent sealing properties and low valve seat leakage.
- Weld Stainless Steel
Spec
- Specifications: steam/Wetted SCS
- Type: Pilot piston type
- Nominal Diameter: Listed after the model number
- Applicable Fluid: steam
- Primary Pressure: 0.1 to 1.0 MPa
- Secondary Pressure: 0.05 to 0.9 MPa
- Connection Method: JIS 10 KFF
- Secondary adjustment pressure: not more than 90% of the primary pressure (gauge pressure).
- Minimum Differential Pressure: 0.05 MPa
- Maximum decompression ratio: 20: 1
- Maximum temperature: 220 deg.
- Valve seat leakage: rating flow rate 0.01% or less.
- Body: SCS
- Valve Body/Valve Seat: SUS
- Piston Cylinder: SUS
- Diaphragm: SUS
