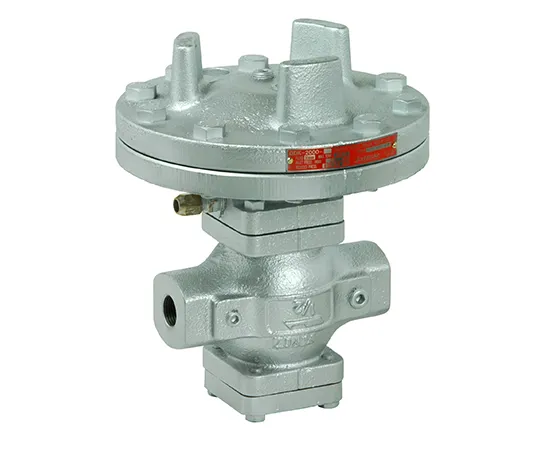

64-3820-78 FCD/SUS Air Operated Linear Pressure reducing valve Screwed/High Pressure steam GDK-2000-15A
Product Description
Product Model: 64-3820-78Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3820-78
Product Brand: Yoshitake Inc.
Features
- Superior controllability against pressure load fluctuation
- Spherical valve body provides high sealing performance
- Easy pressure adjustment thanks to remote control
- Screw-in type
Spec
- Specifications: Remote Control/High Pressure steam
- Type: Pneumatic direct acting
- Nominal Diameter: Listed after the model number
- Applicable Fluid: steam
- Primary Pressure: 0.1 to 2.0 MPa ((JIS 10 K is 0.1 to 1.0 MPa))
- Secondary Pressure: 0.05 to 1.4 MPa ((JIS 10 K is 0.05 to 0.9 MPa))
- Connection Method: JIS Rc, JIS 20 KRF, JIS 10 KFF
- Secondary adjustment pressure: not more than 90% of the primary pressure (gauge pressure).
- Minimum Differential Pressure: 0.05 MPa
- Maximum decompression ratio: 10: 1
- Maximum temperature: 220 deg.
- Valve seat leakage: rating flow rate 0.01% or less.
- Body: FCD 450
- Main Valve: SUS
- Valve seat: SUS
- Diaphragm: SUS
