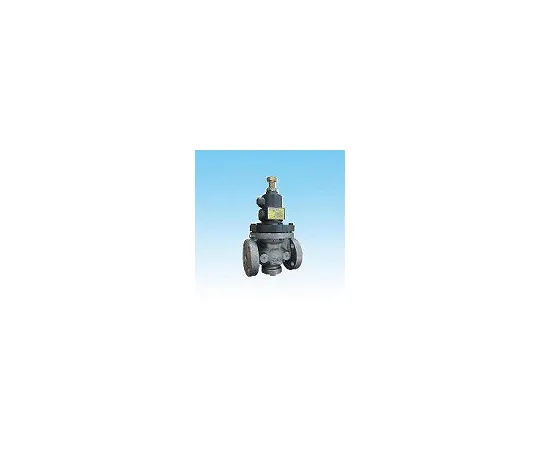

64-3817-55 Wetted SCS Pressure reducing valve Flange GD-20-15A
Product Description
Product Model: 64-3817-55Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3817-55
Product Brand: Yoshitake Inc.
Features
- Maintains stable secondary pressure
- Uses stainless steel for valve seat and excellent durability
- Uses disk for valve body. No Leakage at Valve Closure
- Compatible with 2 Types of Wetted Part Stainless Steel and All Stainless Steel
Spec
- Specifications: Gas/Liquid, SCS
- Format: Linear
- Nominal Diameter: Listed after the model number
- Applicable fluids: Cold water, oil (Kerosene and heavy oil A and B), air
- Primary Pressure: 1.0 MPa or Less
- Secondary Pressure: 0.05 to 0.7 MPa
- Connection Method: JIS 10 KFF
- Minimum Differential Pressure: 0.05 MPa
- Maximum decompression ratio: 10: 1
- Maximum temperature: 80 deg.
- Body: SCS
- valve body: NBR
- Valve seat: SUS
- diaphragm: NBR
