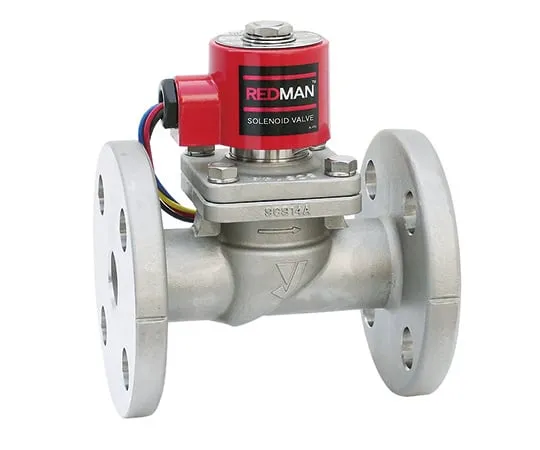

64-3817-27 Redman SCS Solenoid Valve Flange, Energization Open, AC 100/200, RoHS DP-100F-65A
Product Description
Product Model: 64-3817-27Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3817-27
Product Brand: Yoshitake Inc.
Features
- Body Made of Stainless Steel (SCS14 A)
- Durability and Scale Resistance 3 times higher than before
- Gasket ***s PTFE with emphasis on airtightness
- Free horizontal and vertical mounting (within 90° of coil up)
- Coils are available in 2 types: 15 A to 25 A (red) and 32 A to 65 A (black).
Spec
- Specifications: AC/open type when energized
- Type: Solenoid Valve
- Type: DP Type (Pilot)
- Type: Piston
- Nominal Diameter: Listed after the model number
- Fluid: steam, Air, Cold/Hot Water, Oil (20 cSt or less), nitrogen gas Argon Gas carbon dioxide gas (dry condition)
- Applied Pressure: 0 to 1.0 MPa (Vacuum cannot be ***d)
- Minimum Operating Pressure: 0 MPa (Differential pressure 0.03 MPa or more in the case of a coil facing sideways)
- Maximum temperature: 180 ° C (nonfreezing)
- Ambient Temperature: 50 ° C or Less (nonfreezing)
- rated voltage: 100/200 VAC Wiring Method Selection Type/50/60 Hz Shared
- Valve Seat Leakage: 50 mL/min (standard state) (Air Pressure 0.6 at MPa)
- Protection Structure/Protection grade: Dust-Proof Type, IP 64
- Connection: JIS 10 KFF Flange
- Valve Box: SCS 14 A
- Valve Body: SCS 14 A
- Disk: PTFE (Fluorine Plastic)
- Gasket: PTFE (Fluorine Plastic)
