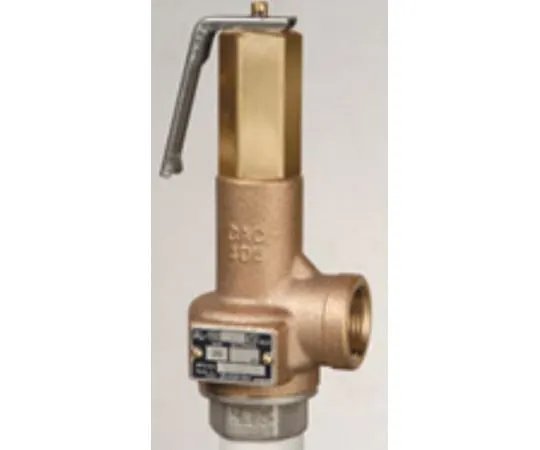

64-3813-26 Lift safety Valve Sealed Type Lever Type/Screwed AL-150TML-15AX0.1MPa
Product Description
Product Model: 64-3813-26Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3813-26
Product Brand: Yoshitake Inc.
Features
- The pressure section is subdivided to achieve an ultra-precise finish. The valve lift lever type allows for manual blowing inspection. The adjustable spring is made of stainless steel (SUS304) and has a long life. The main part (Valve body and valve seat) is SCS14A and has excellent corrosion resistance. The main part ***s a soft sheet and has excellent valve seat airtightness. The airtight structure ensures no external leakage.
Spec
- Specifications: Sealed lever type, soft sheet type
- Type: safety relief valve
- Format: lifting height Expression
- Nominal Diameter: Listed after the model number
- Applicable fluids: Air, cold/hot water, or oil, please contact us.
- Applicable Pressure Range: 0.05 to 1.0 MPa
- Connection Method: JIS Rc
- Maximum temperature: 120 deg.
- spring box: CAC
- Valve Body/Valve Seat: SCS 14 A (FKM)
