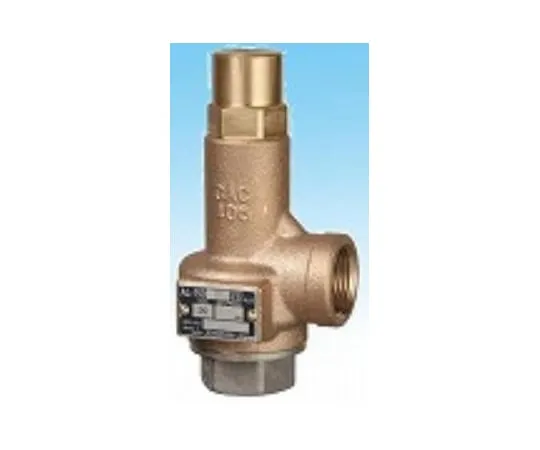

64-3812-46 lifting height Safety Valve Sealed Type, Screwed 40 A1 - 1/2 B 0.34 MPaSET AL-150T-40AX0.1MPA
Product Description
Product Model: 64-3812-46Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3812-46
Product Brand: Yoshitake Inc.
Features
- The pressure section is subdivided to achieve an ultra-precise finish
- The adjustable spring is made of stainless steel (SUS304) and has a long life
- The main part (Valve body and valve seat) is SCS14A and has excellent corrosion resistance
- The main part has a soft sheet and has excellent valve seat airtightness
- Due to its hermetically sealed structure, there is no external leakage
Spec
- Size (A): 40 A
- Size (B): 1 - 1/2 B
- 0.34 MPaSET
- Applicable fluids: steam, Air, Cold/Hot Water, Oil, Other Non-Dangerous Fluid
- main body material: CAC
- connections: JISRc
- Valve seat: SCS
- Applicable Pressure Range: 0.05 -1.0 MPa
- Maximum temperature: 220 ° C (150 ° C for liquids)
