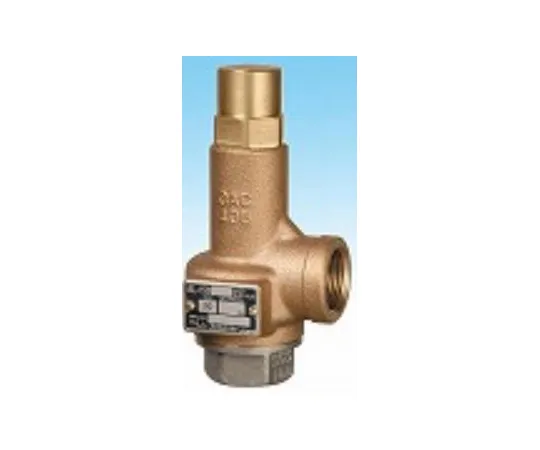

64-3810-89 lifting height Safety Valve Sealed Type, Screwed 32 A1 - 1/4 B 0.10 MPaSET AL-150-32AX0.1MPA
Product Description
Product Model: 64-3810-89Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3810-89
Product Brand: Yoshitake Inc.
Features
- It is a universal type that can handle fluids such as steam, air, water and oil. The pressure division was subdivided to achieve a precision finish using advanced technology to pursue the best performance. Advanced technology, high-grade materials, and a simple mechanism make maintenance and inspection easy, as well as incredibly durable. Due to the sealed structure, no fluid leaks to the outside.
Spec
- Size (A): 32 A
- Size (B): 1 - 1/4 B
- 0.10 MPaSET
- Applicable fluids: steam, Air, Cold/Hot Water, Oil, Other Non-Dangerous Fluid
- main body material: CAC
- connections: JISRc
- Valve seat: SCS
- Applicable Pressure Range: 0.05 -1.0 MPa
- Maximum temperature: 220 ° C (150 ° C for liquids)
