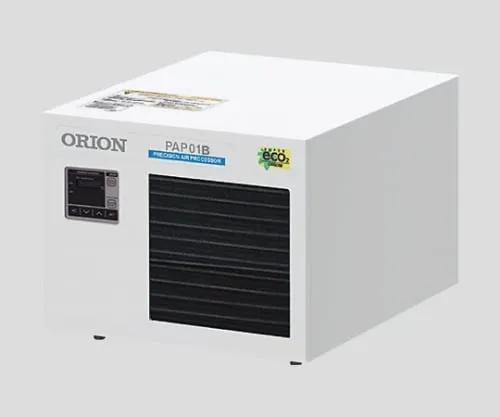

3-1388-01 Energy Saving Precision Air Conditioner PAP Series Mini Series 412 x 500 x 346 PAP01B
model:
3-1388-01
category:
gasmonitors
Product Description
Product Model: 3-1388-01 Features It is suitable for la […]
Contact Us
Product Details
Product Model: 3-1388-01
Features
- It is suitable for laboratories such as factories, universities, and research facilities that require a precise temperature and humidity environment.
- It is comfortable to be installed in the room since it cuts waste heat.
Spec
- Type: Mini series
- Model number: PAP01B
- Size (mm): 412 x 500 x 346
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us.
- *A proposal matched to the ***, Exclusive design for various chamber booth is also available. Please contact with us.
- Temperature and humidity settings range *1: 18 - 30℃
- Temperature and humidity control accuracy *2: ±0.1℃
- Cooling (50/60Hz): 0.33/0.39kW
- Air volume: 0.7 - 1.0m3/min
- Control air discharge port: φ75mm
- Power supply *3: Single phase 100V ±10% 50/60Hz
- Power (50/60Hz): 0.34kW
- Weight: 32kg
- Refrigerant: R134a
- *1 It does not represent controllable temperature range. The controllable temperature range, Varies dep***ing on the suction air temperature and humidity.
- *2 When suction air temperature and humidity is stable. Discharge port 1 point, Controller display precision.
- *3 Balance between phases of power voltage should be within ±3% or less.
