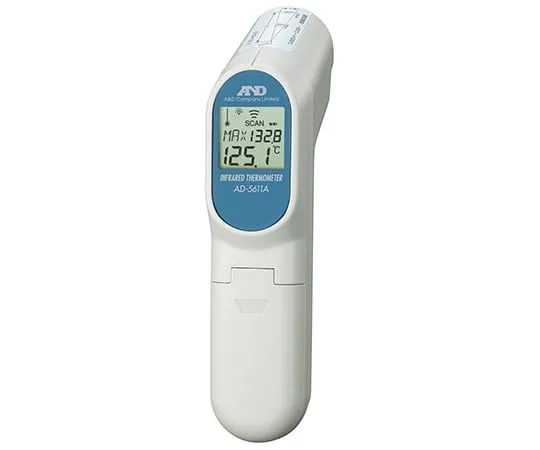

1-8755-01 Infrared Radiation Thermometer AD-5611A
Product Description
Product Model: 1-8755-01Product Brand: A&D Features […]
Contact Us
Product Details
Product Model: 1-8755-01
Product Brand: A&D
Features
- [Applications]
- Heat generation and temperature control of machinery, piping equipment, and air conditioning equipment; temperature measurement and control of paint drying process; temperature control of asphalt pavement and concrete curing; temperature control of plastic molding and resin products; heat generation and temperature control of walls, floors, and ceilings of buildings; temperature control of fermentation and aging temperature of foods such as alcohol, soy sauce, miso, and bread; temperature control of foods (Meat, seafood) and temperature control during transportation and storage
- [Features]
- PS/C mark (JQA) certified products
- Maximum temperature during measurement displayed at the same time
- Backlight with laser marker
- Auto power off function (auto off in about 15 seconds)
- Measurement range is -38 to +365°C (AD5635/AD5619)
- Measurement range is -60 to +500°C (AD5611 A/AD5614)
Spec
- Model number: AD-5611A
- Emissivity setting range: 0.95 (fixed)
- Measurement accuracy: +/- 2% or +/- 2℃, whichever is larger
- Distance and measurement range: D: S = 11: 1
- Laser marker: Class 2 (JIS C 6802), Laser wavelength 635 - 660nm, Output power 1mW or less
- Power supply: AAA dry cell x 2 (included)
- Size: 39 x 72 x 175mm
- Weight: Approx 179g (including cell)
- Measurement range: -60 to +500℃
- Resolution: - 9.9 - 199.9℃/0.1℃, Other/1℃
