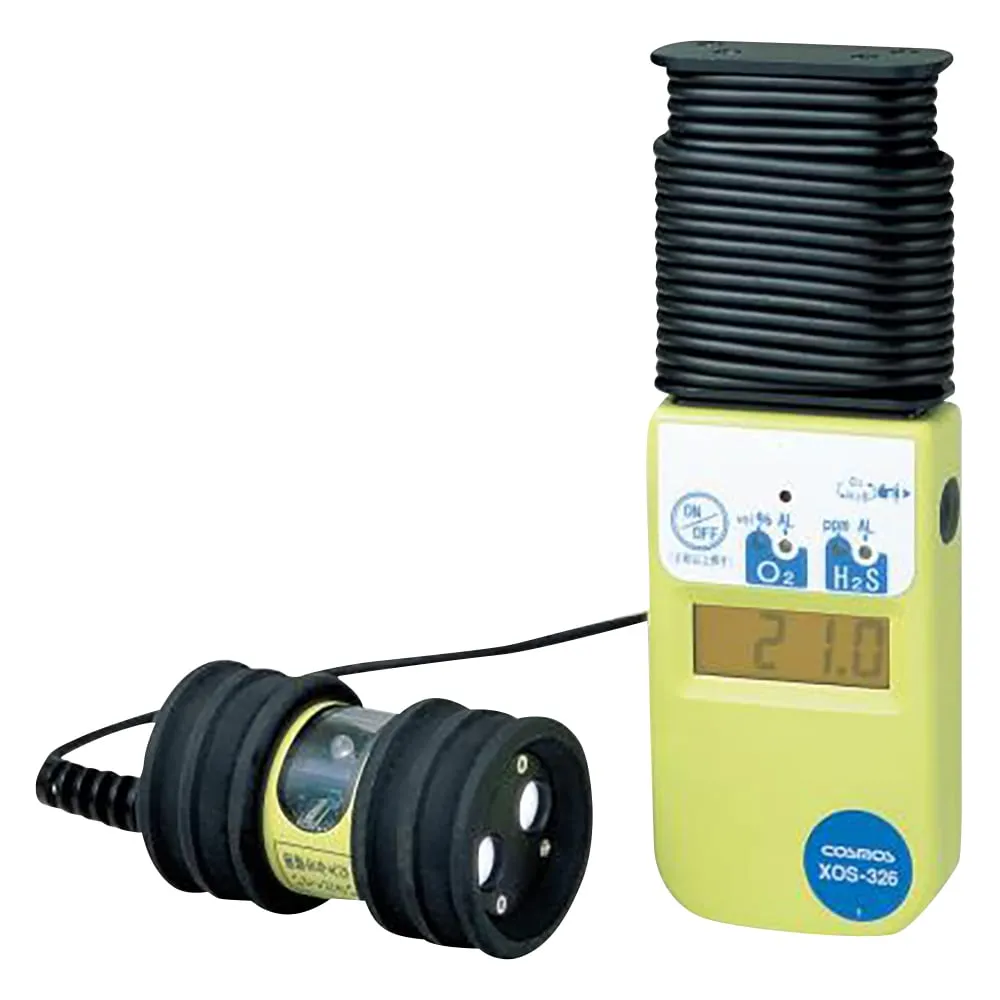

1-8752-03 Oxygen And Hydrogen Sulfide Detector XOS-326
Product Description
Product Model: 1-8752-03Product Brand: New Cosmos Elect […]
Contact Us
Product Details
Product Model: 1-8752-03
Product Brand: New Cosmos Electric Co., Ltd.
Features
- Products related to the Regulation for the Prevention of Anoxia
- Simultaneous measurement of oxygen and hydrogen sulfide is possible.
- For the measurement before the work in the acid shortage danger place.
- The measured density is displayed on a large screen with digital numbers.
- Alarm is announced by the lamp and buzzer.
- Use the buzzer to notify of battery voltage drop.
- We have XOS-2200 for the mounting type.
Spec
- Model number: XOS-326
- Detection principle: Oxygen/diaphragm galvanic battery type
- Detecting method: Diffusion type
- Response speed: Oxygen/20 seconds or less, Hydrogen sulfide/30 seconds or less
- Accuracy: Oxygen/+/-0.5vol% or less, Hydrogen sulfide/+/-5% F.S or less
- Alarm settings: Oxygen/19.5vol% (first stage), 18.0vol% (second stage), hydrogen sulfide/10.0ppm (first stage), 15.0ppm (second stage)
- Power supply: AA alkaline dry cell x 2 pieces (included for test)
- Battery life: 50 continuous hours or more
- Sensor cable length: 5m
- Size: 66 x 29 x 195mm
- Weight: Approx 450g
- Accessories: Leather case, shoulder belt, filter element x 2
- Detection gas: Oxygen, hydrogen sulfide
- Measurement range: Oxygen/0 - 25vol%, hydrogen sulfide/0 - 30ppm
