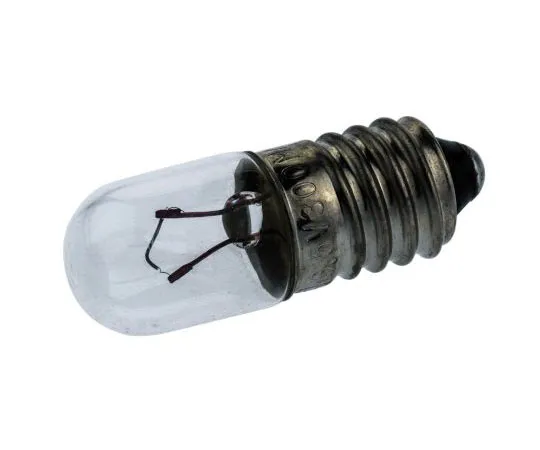

63-4140-28 E10 Indicator Light, Clear, 6.5 V, 300 mA, 4000h 104-806
Electronic/Electrical Parts and Controll Equipments

63-4140-28 E10 Indicator Light, Clear, 6.5 V, 300 mA, 4000h 104-806

model: 63-4140-28
brand: RS PRO

Product Description

Product Model: 63-4140-28Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4140-28
Product Brand: RS PRO

Features

  • T-3 (10mm) Tubular MES. Filament lamps will perform to specification and give optimum life when: a) They are powered at the rated voltage from a stabilised 50 Hz AC supply. b) Ambient temperature is in the range 20°C to 25°C. c) No mechanical vibration is present. Deviations from these criteria have a significant effect on lamp life, particularly with low current filaments ( ;80mA). Power from a DC supply at the rated voltage can reduce the listed life by up to 50%. The effect of deviation from the rated operating voltage should be ****d: 5% above will reduce lamp life by up to 50%. 5% below will significantly increase lamp life. Power consumption may vary up to ±10% compared to the listed values at the rated supply voltage. Therefore particular care should be taken when a number of lamps are connected in series. In such applications it is recomm***ed that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.

Spec

  • Quantity:1bag
  • Voltage Rating : 6.5 V
  • Lamp Base : E10
  • Current Rating : 300 mA
  • Diameter : 10mm
  • Lamp Size : T3 1/4
  • Length : 28 mm
  • Lens Colour : Clear
  • Luminosity : 12 lm
  • Life Hours : 4000h
  • CODE No.:104-806
