63-7996-71 RS PRO Gauge for Air, Gas, Hydraulic Fluid, Liquid, Water Pressure Sensor, 40bar Max Pressure Reading , 9 → 32 V 797-5027
Product Description
Product Model: 63-7996-71Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7996-71
Product Brand: RS PRO
Features
- RS Pressure Transducers - IND series. The IND series is suitable for a wide range of industrial applications. It has a probe which ***s a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing. Piezo-resistive thick film ceramic sensor Stainless steel body +/- 0.25% accuracy Different outputs including mV, Volts and mA Microprocessor based amplifier Operating temperature: -20 ºC to +135 ºC Temperature compensated, calibrated and supplied with a traceable serial number and calibration certificate
Spec
- Quantity:1piece
- Pressure Reading Type:Gauge
- Minimum Pressure Reading:0bar
- Maximum Pressure Reading:40bar
- Accuracy:±0.25 %
- Output Type:Current
- Media Measured:Air, Gas, Hydraulic Fluid, Liquid, Water
- Process Connection:BSP 1/4
- Analogue Output:4 → 20 mA
- Maximum Current:20 mA
- Supply Voltage:9 → 32 V dc
- Housing Material:Stainless Steel
- IP Rating:IP65
- Maximum Pressure Setting:400bar
- CODE No.:797-5027
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4727-59 1:1 Surface Mount Telecom Transformer, 3.6H, 111Ω OEP8000
model: 63-4727-59
brand: OEP
Electronic/Electrical Parts and Controll Equipments
63-4985-93 RS PRO Green, Red, Yellow Indicator, 12 V dc, 14mm Mounting Hole Size, Lead Wires Termination, IP67 703-8976
model: 63-4985-93
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-3147-01 Knob PHI. 30 With Black Indicator Line Shaft Diameter PHI.6 K-75-L
model: 63-3147-01
brand: SATO PARTS CO., LTD.
Electronic/Electrical Parts and Controll Equipments

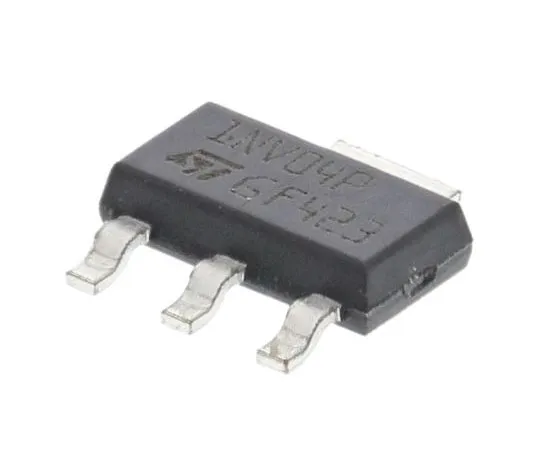

63-7990-71 STMicroelectronics VNN1NV04PTR-E Intelligent Power Switch, OMNIFET: Fully Autoprotected Power MOSFET, 1.7A, 40V 3 + VNN1NV04PTR-E
