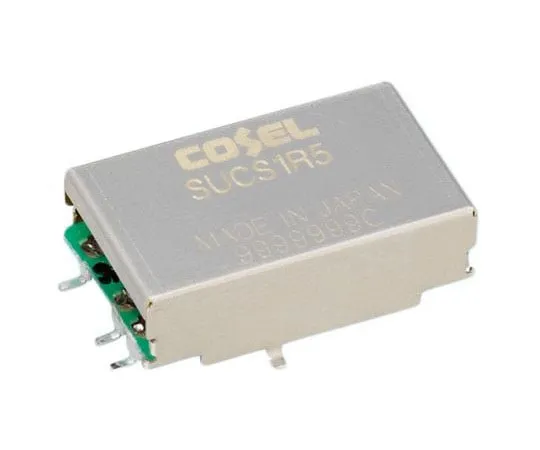

63-4140-01 Cosel 1.5W Isolated DC-DC Converter Surface Mount, Voltage in 4.5 → 9 V dc, Voltage out 5V dc SUCS1R50505BP
Product Description
Product Model: 63-4140-01Product Brand: COSEL Features […]
Contact Us
Product Details
Product Model: 63-4140-01
Product Brand: COSEL
Features
- UL60950-1, cUL, EN60950-1. 5. SUCS Series, 1.5 W → 10 W, Single Output. The SUCS series of isolated DC-DC converters from Cosel are available with a rated output wattage of 1.5 W to 10 W. Available with SMD mounting or through hole mounting, these isolated DC-DC converters also feature a synchronous rectifier circuit that ensures high efficiency. Features and Benefits:. SUCS3, SUCS6 and SUCS10 models feature a built-in remote ON/OFF. Built-in overcurrent protection circuits. Aluminium and tantalum capacitors are not built in, ensuring high reliability. Cooled by convection/forced air
Spec
- Quantity：1piece
- Output Voltage : 5V dc
- Input Voltage Range : 4.5 → 9 V dc
- Input Voltage Nominal : 5 V dc
- Isolation Voltage : 500V ac
- Power Rating : 1.5W
- Output Current : 300mA
- Mounting Type : Surface Mount
- Number of Outputs : 1
- Package : SMD
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Length : 22.4mm
- CODE No.:102-929
