Electronic/Electrical Parts and Controll Equipments

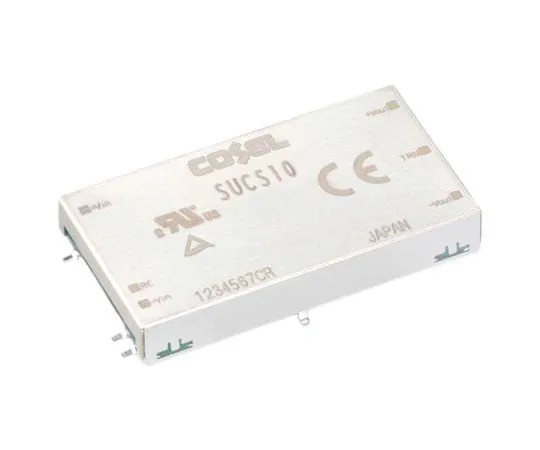

63-4139-86 Cosel 12W Isolated DC-DC Converter Surface Mount, Voltage in 18 → 36 V dc, Voltage out 15V dc SUCS102415BP
Product Description
Product Model: 63-4139-86Product Brand: COSEL Features […]
Contact Us
Product Details
Product Model: 63-4139-86
Product Brand: COSEL
Features
- UL60950-1, cUL, EN60950-1. 5. SUCS Series, 1.5 W → 10 W, Single Output. The SUCS series of isolated DC-DC converters from Cosel are available with a rated output wattage of 1.5 W to 10 W. Available with SMD mounting or through hole mounting, these isolated DC-DC converters also feature a synchronous rectifier circuit that ensures high efficiency. Features and Benefits:. SUCS3, SUCS6 and SUCS10 models feature a built-in remote ON/OFF. Built-in overcurrent protection circuits. Aluminium and tantalum capacitors are not built in, ensuring high reliability. Cooled by convection/forced air
Spec
- Quantity：1piece
- Output Voltage : 15V dc
- Input Voltage Range : 18 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 500V ac
- Power Rating : 12W
- Output Current : 800mA
- Mounting Type : Surface Mount
- Number of Outputs : 1
- Package : SMD
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Depth : 7mm
- CODE No.:102-749
