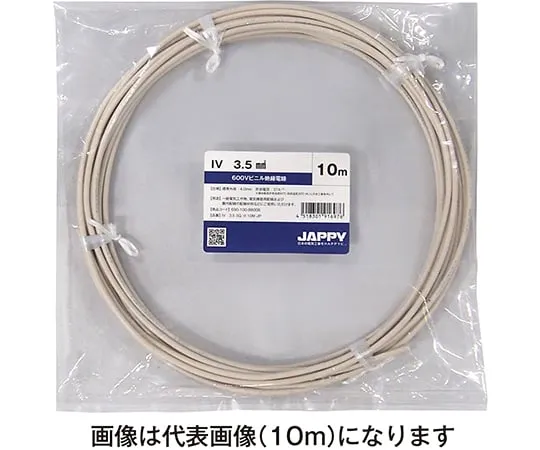

64-6384-52 Vinyl Insulation Electric Wire White 5m IV3.5SQ5MJP
Product Description
Product Model: 64-6384-52Product Brand: JAPPY Features […]
Contact Us
Product Details
Product Model: 64-6384-52
Product Brand: JAPPY
Features
- Can be ***d for wiring materials for general electric works, wiring for electrical equipment and wiring inside boards.
Spec
- Conductor Nominal cross section Product: 3.5 mm2
- Conductor Composition element wire Count/element wire Diameter: 7 pieces/0.8 mm
- Conductor outer diameter: 2.4 mm
- insulation Body Thickness: 0.8 mm
- Sheath color: white
- Finished outer diameter: 4.0 mm
- Approximate mass: 45 kg/km
- rated voltage: 600 volts
- Heat-resistant temperature: 60 degrees Celsius
