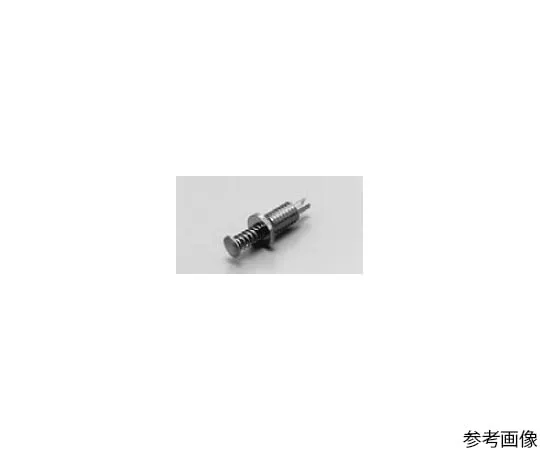

64-6183-42　Battery spring Probe VB 24 series (10 pieces)　VB-24-8-BB

model: 64-6183-42

brand: MAC EIGHT CO., LTD

category: suctioncupmask

Product Description

Product Model: 64-6183-42Product Brand: MAC EIGHT CO., […]

18866622123

WeChat ID: 18866622123

Product Model: 64-6183-42

Product Brand: MAC EIGHT CO., LTD

Content: With nuts
Material: Body/Contact: Brass, Spring/E-Ring: Stainless steel
Treatment: Body contact: Nickel base gold-plated
Current rating: 5A
Contact resistance: 10 m.OMEGA. or less
Endurance: 10,000 times or more
Mountable plate thickness: 10. to 3.0 mm
Mounting hole diameter: 4.2 phi
Working power: 200 g with 1 mm stroke
Stroke: 2mm
Operating temperature range: -20 degrees C to + 100 degrees C
Entries: 10
Use for charging and discharging batteries, etc. Can be fixed with inrush current compatible nut.
RoHS compliant
Quantity: 1 bag (10 bottles)
